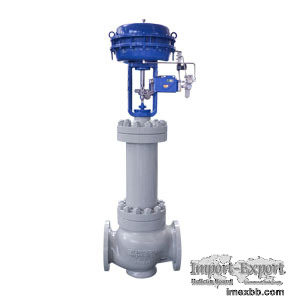

LN82W Series DN15 Bellows Globe Control Valve

LN81W / 82 series SUPCON bellows single-seat control valve, based on LN81/82
series valve single-seat non pressure balance structure on the basis of
increase the bellows seal structure, compression elastic stainless steel
bellows in bearing parts connected to the valve stem in together, and packing
of double seal, eliminate medium leakage hidden trouble. Suitable for
differential pressure is highly toxic, flammable, explosive, volatile and the
adjustment of the rare and precious metal medium.
The company is specialized in producing bellows single-seat control valve,
Double seated valve, Cryogenic control valve and soon
TECHNICAL PARAMETERS
Nominal Size DN15 ~ DN300
Pressure Rating PN16/25/40/63/100;CL150(PN20)/300(PN50)/600(PN110) ,
Operateing Temperature -46℃~ 350℃
Characteristics Equal percentage, linear, quickly open
Rangeability 30:1、50:1、 100:1
Seat Leakage Class ANSI B16.104: IV、V、VI
Body Material WCB/WCC/LCB/LCC;WC6/WC9;CF8/CF8M;4A/5A etc.
Trim Material 630/316/316+ST/316nitriding/316+Ni60/316+WC etc.
Seal Material PTFE+ graphite v-shaped packing, flexible graphite ring
packing, graphite +PTFE braided packing etc.

Minimum Order: 1 pieces
