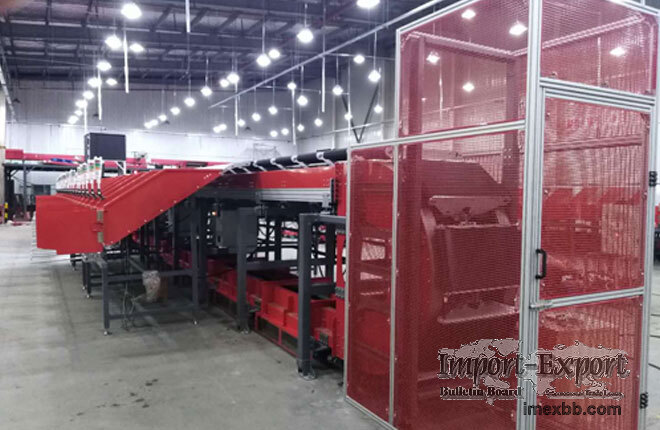

LINEAR SORTER

Linear sorter: the conveyor surface is composed of metal sheets, and there
is a narrow belt on each metal sheet, which can move laterally along the
metal sheet. When parcel arrives designated chute position, control system
controls guide rob to action to make belt move towards side of conveyor,
motivating the parcel and realizing the parcel sorting.

Linear design, compact structure, small footprint, much space saving.

Wide application range, applicable for various goods with different sizes,
shapes and natures, lower than 10kg, including very small and thin ones.

Extremely low running noise. The average noise of line sorter is lower than
70dB.

Low operation and maintenance cost, easy and safe to operate.

Specification of Linear Sorter
Parameters of twin-carrier linear sorter
No. Item name Parameter Remark
1 Carrier pitch 500MM
2 Carrier size 424*700MM
3 Sorter speed 1.0M/S~1.6M/S
4 Induction method Manual, semi-automatic, fully automatic
Automatic induction（Min. weight 100g, Min. size 150*100*10mm)
4 Theoretical efficiency 10800pcs/H（1.5M/S） Loop line
speed*3600seconds/0.6
5 Sorting accuracy ≥99.99%
6 Barcode reading rate ≥99%
7 Chute width 750mm Width adjusted according to parcel size and
loop line speed
8 Parcel size Max.600mm×400mm×400mm，Min.160mm×80mm×1mm
Support two carriers for one parcel loading（max. parcel size 800*600mm）
9 Parcel weight 20g~30kg Support two carriers for one parcel
loading, max. parcel weight 50kg.


Main parts brand
No. Main parts Brand Remark
1 Carrier belt SIEGLING、HIGHTEN
2 Electric roller M&D/WIN Roller
3 Linear motor SEW synchronous linear motor
4 Barcode reader Italy Datalogic/Germany SICK/US Cognex/HIKVISION
5 Grayscale test US BANNER/Italy Datalogic
6 PLC Siemens
7 Sliding contact line Germany VAHLE
8 Track LISEN

As a logistics solution provider, Lisen Automation uses sophisticated parts
in linear sorters and will offer perfect one-stop services for the
customers.

Advantages of Linear Sorter

Automatic picking efficiency 10800pcs per hour.

Low operation and maintenance cost, low energy consumption, short ROI cycle.

Simple to operate, easy to use.

Low running noise, average noise less than 70dBA(one meter distance),
improving working environment.

Manual, semi-automatic, fully automatic 3 induction methods for choosing.

Main drive adopts magnetic levitation structure (synchronous linear
motor/asynchronous linear motor).

Automatic deviation rectification, multilateral and beyond edge detection
functions.

Small footprint, applicable in narrow sites.

Application Industries of Linear Sorter
The linear sorter is one of baggage handling systems and often applied in
the following industries:



Supermarket industry

E-commerce industry

Apparel & footwear industry

Fresh food distribution industry

Other industries

Application Scenarios of Linear Sorter
Applicable for the sorting of parcels or products in Post, Express, E-
commerce, Apparel & Footwear, 3C and other industries； suitable for various
block parcels with different sizes, shapes and natures, excluding those with
uneven bottom, easy rolling or superlight ones；sorting weight range is 20g-
30kg. Customers such as SF Express, Cainiao, JD, etc.

Lisen Automation group is a national material handling system supplier, we
provide aviation automation, chemical automation and etc.
