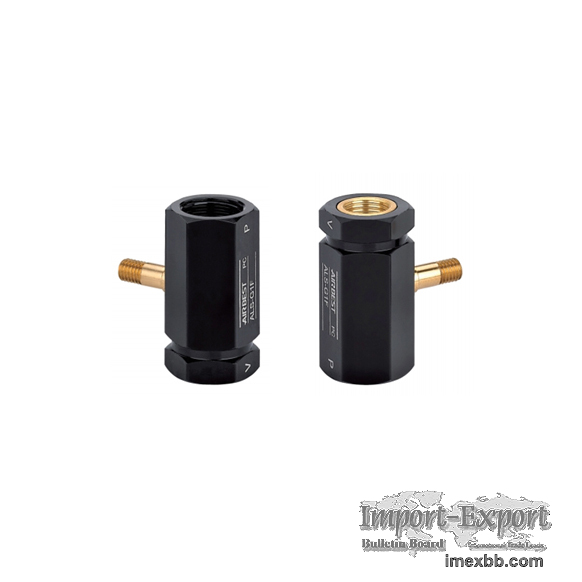

LINEAR SINGLE STAGE VACUUM GENERATOR

ALS Series
No need to connect PU hose, it can directly produce vacuum at the working site
Saving space, suitable for installation occasions with small space and fast
movement

FEATURES
LINEAR SINGLE STAGE VACUUM GENERATOR

It is installed directly between the suction cup and compressed air source
Aluminum alloy body, small size, lightweight

SELECTION GUIDE
ALS SERIES BASIC VACUUM GENERATOR
ALS - M5F
 ①       ②

① Series ② Vacuum port connection thread
ALS M5F - M5×0.8 female thread
G1F - G1/8 female thread
G2F - G1/4 female thread

Technical parameters

Model Rated air
supply pressure
bar Max.
vacuum level
-kPa Max.
vacuum flow
NL/min Air consumption
NL/min Noise
level
dB(A) Weight
g
ALS-M5F 5 85 14.4 42 80 18
ALS-G1F 5 85 14.4 42 80 22
ALS-G2F 5 85 14.4 42 80 21

SPECIFIC
LINEAR SINGLE STAGE VACUUM GENERATOR

Vacuum flow(NL/min) at different vacuum levels(-kPa)

Model Air supply pressure
bar Air
consumption
NL/min 0 10 20 30 40 50 60 70 80
Max.
vacuum level
-kPa
ALS 5.0 42 14.4 13.8 12.0 10.2 7.80 3.60 3.00
1.80 0.24 85


Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model Air supply
pressure
bar Air consumption NL/min 10 20 30 40 50 60
70 80 Max. vacuum level
-kPa
ALS 5.0 42 0.39 0.79 1.34 2.06 3.32 4.62 7.71
13.97 85


DIMENSIONS
LINEAR SINGLE STAGE VACUUM GENERATOR

Model/size H H1 H2 G G1 G2 S
ALS-M5F 30 15 13 G1/4 M5×0.8 M5×0.8 17
ALS-G1F 35 17.5 13 G1/4 G1/8 M5×0.8 17
ALS-G2F 38 19 13 G1/4 G1/4 M5×0.8 17
