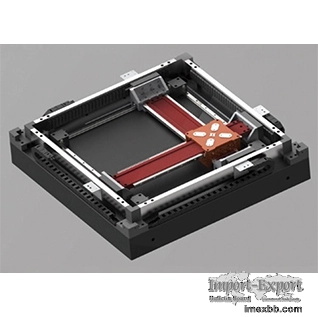

Linear Motion Products Platform

A Linear Motion Platform, also known as a motorised linear stage or motorized
vertical translation stage , is a mechanical device designed to provide
controlled linear motion in various directions. It consists of a base, a moving
platform or carriage, and a means of actuation. Linear Motion Platforms are
commonly used in applications that require precise positioning, scanning, or
translation.

Types of Linear Motion Platform
Linear Motion Platforms provide controlled and precise linear motion for a wide
range of applications. Their versatility, accuracy, and customizable features
make them valuable tools in industries that require accurate positioning and
motion control.

How Do You Select Linear Motion Platform?
Travel Range: The required distance the platform needs to move.

Load Capacity: The maximum weight the platform can support.

Speed and Acceleration: The desired velocity and acceleration capabilities.

Accuracy and Repeatability: The level of precision required for the
application.

Environmental Factors: Considerations like temperature, cleanliness, and
vibration sensitivity.

Integration and Compatibility: Compatibility with other system components, such
as controllers or software interfaces.

Benefits of Linear Motion Platform
- Precise Positioning: Linear Motion Platforms offer high accuracy and
repeatability, allowing for precise positioning of objects or components.

- Smooth and Stable Movement: They provide smooth and stable linear motion with
minimal vibration or backlash.

- Flexibility and Customization: Linear Motion Platforms can be customized to
meet specific application requirements, including different travel lengths,
load capacities, and mounting options.

- Integration: They can be easily integrated into larger systems or
workstations.

- Automation Capability: Motorized platforms can be automated and controlled
using software or external devices.

- Diverse Applications: Linear Motion Platforms are widely used in areas such
as microscopy, metrology, automation, semiconductor manufacturing, laser
processing, and research and development.

Structure and Components of Linear Motion Platforms
Base: The foundation of the platform that provides stability and support.

Carriage or Moving Platform: The component that moves along the linear axis.

Actuation Mechanism: The means by which motion is achieved, such as lead
screws, ball screws, linear motors, or belts.

Guide System: Includes linear guides, rails, or bearings that provide smooth
and precise movement along the desired axis.

Drive Mechanism: Converts rotary motion from the actuator into linear motion,
such as a threaded rod or belt drive.

If you want to know more about motorized linear stages with built in
controllers , please visit our website.

Now the price of linear motion drive systems is reasonable, if you have needs,
please contact us.
