Linear Actuator Motion Motor Stator

A compact linear motor stator is an essential component in custom linear
motors, a type of electric motor that provides linear actuator rotary motion
without the need for traditional rotary-to-linear mechanisms like gears or
belts. The cheap linear motor stator is a stationary part of the motor that
generates the electromagnetic field necessary for the magnetic linear motor's
operation.

Different Types of Linear Motors Stator
Linear motor stators can come in various designs, each with its own advantages
and applications. Here are some common types of iron core linear motor:

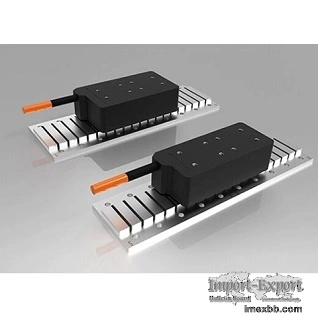

DPG Series Linear Actuator Motion Motor Stator-With lron Core Linear Motor

DPD Series Linear Actuator Motion Motor Stator-With lron Core Linear Motor

DPN Series Linear Actuator Motion Motor Stator-With lron Core Linear Motor

DPW Series Linear Actuator Motion Motor Stator-With lron Core Linear Motor

DUD Series Linear Actuator Motion Motor Stator-Without lron Core Linear Motor

Function of The Linear Magnetic Linear Motor Stator
The primary function of the magnetic linear motor stator is to create a
controlled magnetic field that interacts with the moving part of the motor,
known as the "forcer" or "slider." The interaction between the linear motor
stator's magnetic field and the forcer's permanent magnets or winding currents
generates the linear motion.

Function of The Linear Magnetic Linear Motor Stator
Motion Control of the Linear Motor Stator
The motion control of a linear motor stator involves precise regulation of its
magnetic field to drive linear motion efficiently and accurately. Electrical
currents are carefully adjusted to control the stator's magnetic field,
influencing the mover's movement along the linear path. This control ensures
smooth, precise, and dynamic motion in various applications, including high-
speed trains, CNC machines, and robotics. Proper alignment between the stator
and mover optimizes energy conversion, enhancing the overall efficiency and
performance of the linear motion control systems.

Coil or Magnet Arrangement of the Linear Electromagnetic Motor Stator
1. Coil Arrangement:

In some linear motor components, the linear motor stator consists of coils of
wire wound around laminated cores, similar to traditional electric motors. When
electric current flows through these coils, they generate magnetic fields.

2. Magnet Arrangement:

In other precision linear motors, the stator is equipped with permanent
magnets, which eliminate the need for external power to create the magnetic
field. The arrangement and polarization of these magnets are critical for
proper motor operation.

Applications and Features of The Linear Motor Position Control Stator

Linear motor stator moving parts are all non-contact, eliminating all sources
of noise and friction. This friction-free and quiet operation allows it to be
used in quiet surroundings, such as test laboratories and medical facilities.

Another significant feature is its ability to maintain constant speed without
any fluctuation. This makes it ideal for applications requiring precision, such
as constant speed drug dispensing, which may be difficult to achieve with lead-
screw or ball-screw systems.

The Linear Motor Stator is also environmentally compatible, operating well in a
vacuum and in production locations where oil or water are factors. It boasts
large stroke lengths of up to 4.6 meters, making it perfect for high-precision
conveying over long distances, such as LCDs.

The device offers high controllable speeds, exceeding 10 meters per second,
ideal for line head drives in high-speed printers. Conversely, it can also
provide low speed drives as slow as 8μm per second, making it suitable for
delicate equipment in life sciences.

Linear lead screw dc motor stator high resolution makes it useful for precise
micro-positioning required in semiconductor equipment. This sequence of
features makes the Linear Motor Stator a versatile and efficient tool for
various applications.

If you want to know more kinds of linear motion control systems, please visit
our website.
