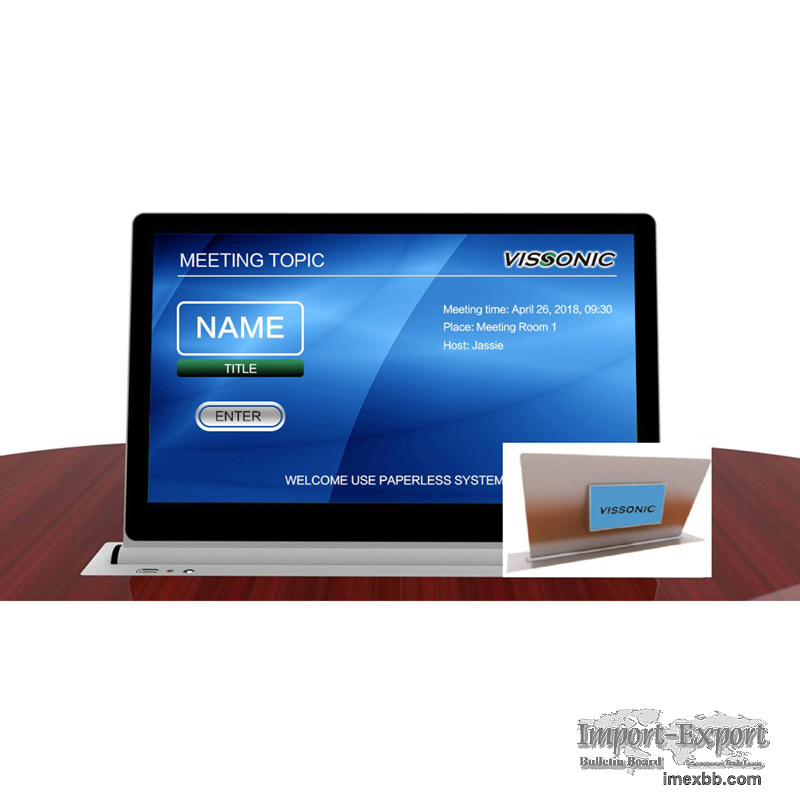

Lifting Screen with Name plate

Lifting Screen with Name plate

Overview
Ultra-thin monitor lift is designed for advance multi-purpose paperless meeting
rooms.When having the general meeting, the LCD can be hidden in the conference
table to keep the desk clean and beautiful.The LCD can be used to display
multimedia information alone, or in groups or all lifted in accordance with
different needs,including conference content,information tips and image
information and so on.

According to the different requirements of the meeting, the lifter can be
controlled separately or in group through setting.

NETLINK Paperless Multimedia System

Features
●Up, down, stop of the lifter can be controlled by the panel button, remote
control and central controller.

●When the lifter reaches the top, the LCD will turn to angle of elevation
automatically.

●When the LCD screens drops, the lifter will close the door automatically.

●When the lifter drops, the door starts anti-pinch function.

●10.1inch Rear Screen for name and title display with VGA input

●The lifter can realize remote control by RS232, RS485 protocol.

Specifications
Model Number VIS-15LDSC VIS-17LDSC
Panel size(mm) 430*70*3 476*70*3
Bottom Case(mm) 415*60*497 461*60*519
Front screen size 15.6inch 17.3inch
Back screen size 10.1inch 10.1inch
Product Weight 12KG 14KG
Package Size 48.8x 13.2x 66cm   53.8x 13.2x 66cm
Gross Weight 13KG 15KG

Click to Enlarge
