LiFePO4 Lithium Ups Battery Backup

PRODUCT DESCRIPTION

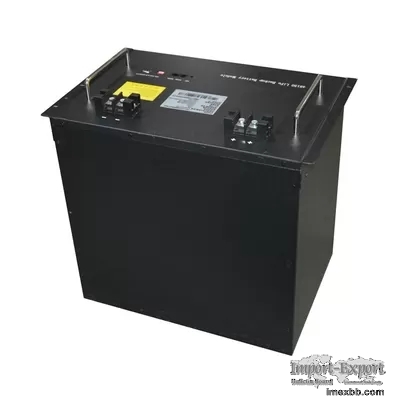

Energy Storage Lithium Battery 48v 150ah 7200WH Solar System Long Service Life



Description

The 48V energy storage lithium battery, compared with lead-acid batteries, has the
advantages of small size, light weight, strong temperature adaptability, high
charging and discharging efficiency, safety and stability, long service life,
energy saving and environmental protection.

Energy Storage Lithium Battery is the future development trend of backup power
technology under the conditions of small and medium-sized backup power supply and
harsh environment.



Model of battery pack CI48V 150AH -7200WH
Nominal voltage 48V
Rated capacity 150AH
Rated reserved energy 7200WH
Standard charging current 0.3C
Maximum continuous charging current 0.5C
Minimum continuous charging current 0.1C
Total charging cut-off voltage 58.4V
Cut-off voltage of charging monomer 3.65V
Standard discharging current 0.5C
Maximum continuous discharging current 1C(150A)
Cut-off voltage of discharging monomer 2.5V
Charging temperature range -5℃～55℃
Discharging temperature range -20℃～65℃
Dimension (W×D×H) 482*400*310mm
(excluding hanger and amphenol connector)
Weight 71kg
Compound mode 15 strings 1parallel
Storage temperature -20℃~45℃
Differential pressure Differential pressure at the discharging end (2.5V for
monomer) ≤300mV
Differential pressure at the charging end (3.65V for monomer)≤300mV

Click to Enlarge
