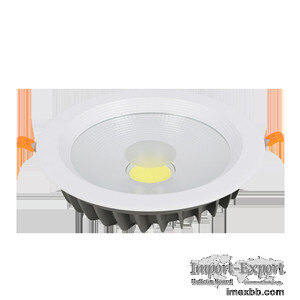

LED Downlight DTT Series high efficiency LED Downlight

LED Downlight DTT Series high efficiency LED Downlight custom LED
Downlight manufacturer

Model: JST-DTT
Wattage: 7W-50W
LED Chip: Citizen/Cree/Epistar
Driver Brand: OSRAM/Philips/Lifud
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle: 90°/110°
Diameter: 90mm-230mm
Cutout: 75mm-210mm

Description
Jarstar DTT Series are originally researched and developed by JST, Protection
class up to IP20, die-casting aluminum housing, baking finished surface, use
bright reflective paper, reflectivity> 95%, high-grade frosted glass, light
transmittance> 90%, high quality Citizen/Cree LEDs , with OSRAM/LIFUD/TRIDONIC
high quality exterior driver, dimmable, good heat sink, brilliant quality, more
than 50,000 hours life span.
Advantages
1. High brightness, Low SDCM﹤3, low light decline
2. High efficacy, high illuminance
3. Glare-free design, perfect light spot and accurate beam angle, make
surroundings of comfortable illumination
4. Exterior driver(100-277v input)
5. Refined components and design, guarantee a long life span of over 50,000
hours

Specification
Model Power CRI CCT PF Current Input Voltage Beam Angle
Dimension Cutout
JST-DTT 7W >80/90 2700K-5000K >0.65 0.15A AC220-240V
90°/110° D90*H55mm 75mm
JST-DTT 10W >80/90 2700K-5000K >0.65 0.25A AC220-240V
90°/110° D120*H55mm 95mm
JST-DTT 15W >80/90 2700K-5000K >0.90 0.35A AC220-240V
90°/110° D175*H52mm 150mm
JST-DTT 20W >80/90 2700K-5000K >0.90 0.50A AC220-240V
90°/110° D195*H52mm 170mm
JST-DTT 30W >80/90 2700K-5000K >0.90 0.75A AC220-240V
90°/110° D225*H52mm 205mm
JST-DTT 40W >80/90 2700K-5000K >0.90 1.00A AC220-240V
90°/110° D225*H66mm 205mm
JST-DTT 50W >80/90 2700K-5000K >0.90 1.25A AC220-240V
90°/110° D230*H108mm 210mm

Application
Offices, shopping malls, fashion stores, Stations, supermarkets, exhibitions
etc.

Looking for professional LED surface mounted downlight? Then view our full
range of store, super market, bedroom LED downlights at www.jarstar-tech.com
online today.

https://www.jarstar-tech.com/led-dow , nlight/led-downlight-dtt-series.html

Minimum Order: 100 pieces
