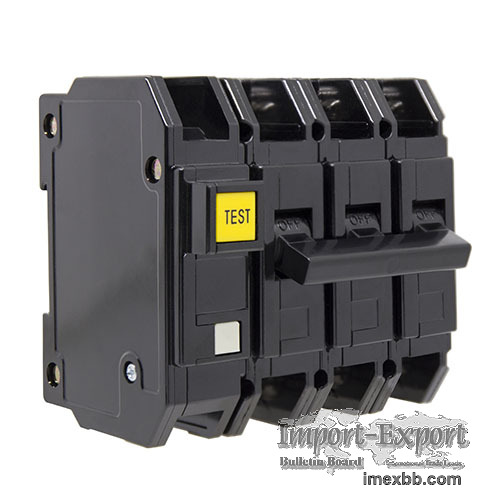

Leakage Circuit Breaker - BH Type

Leakage Circuit Breaker with Overload Protection for Wiring
BH Type Overload with Leakage Protection (AES series & AEP series & AE
series)

There are many types of circuit breakers available on the market, including
the RCBO, which is a three-in-one circuit breaker that can detect leakage,
overload, and short circuit problems simultaneously. The AES, AEP, and AE
series are all examples of RCBO circuit breakers with different
specifications and features.

The AES series is a framework capacity A RCBO circuit breaker with three
models: AES, AESH, and AESS. They all support 1-phase 2-wire and 1-phase 3-
wire/3-phase 3-wire connection types with a rated voltage of 110/220V or
220V and a rated current of 15, 20, 30, 40, or 50A. Their rated breaking
capacity is 5kA at 110V or 220V. They have a rated sensitivity current of
30mA and a non-actuating current of 1/2 the sensitivity current. The
tripping time is within 0.1 seconds, and the tripping mechanism is thermal-
magnetic. The dimensions and weight of the three models vary slightly and
can be selected according to specific needs.

The AEP series is another framework capacity A RCBO circuit breaker with
two models: AEP and AEPH. They both support 1-phase 2-wire and 1-phase 3-
wire/3-phase 3-wire connection types with a rated voltage of 110V or 220V
and a rated current of 15, 20, 30, 40, or 50A. Their rated breaking
capacity is 5kA at 110V or 10kA at 220V. They have a rated sensitivity
current of 30mA and a non-actuating current of 1/2 the sensitivity current.
The tripping time is within 0.1 seconds, and the tripping mechanism is also
thermal-magnetic. The AEPH model supports plug-in wiring, making it more
convenient to install and dismantle. The dimensions and weight of the two
models also vary slightly and can be selected according to specific needs.

The AE series is a framework capacity A RCBO circuit breaker with two
models: AE and AEH. They support different numbers of poles and connection
types with a rated voltage of 110V, 220V, or 220V/380V and a rated current
of 15, 20, or 30A for AE or 15, 20, 30, 40, or 50A for AEH. Their rated
breaking capacity is 5kA at 110V, - at 220V, 2.5kA at 380V, - at 440V, or
5kA at 380V. They have a rated sensitivity current of 30mA or
30/100/200/300mA adjustable and a non-actuating current of 1/2 the
sensitivity current. The tripping time is within 0.1 seconds, and the
tripping mechanism is also thermal-magnetic. The dimensions and weight of
the two models also vary slightly and can be selected according to specific
needs.
