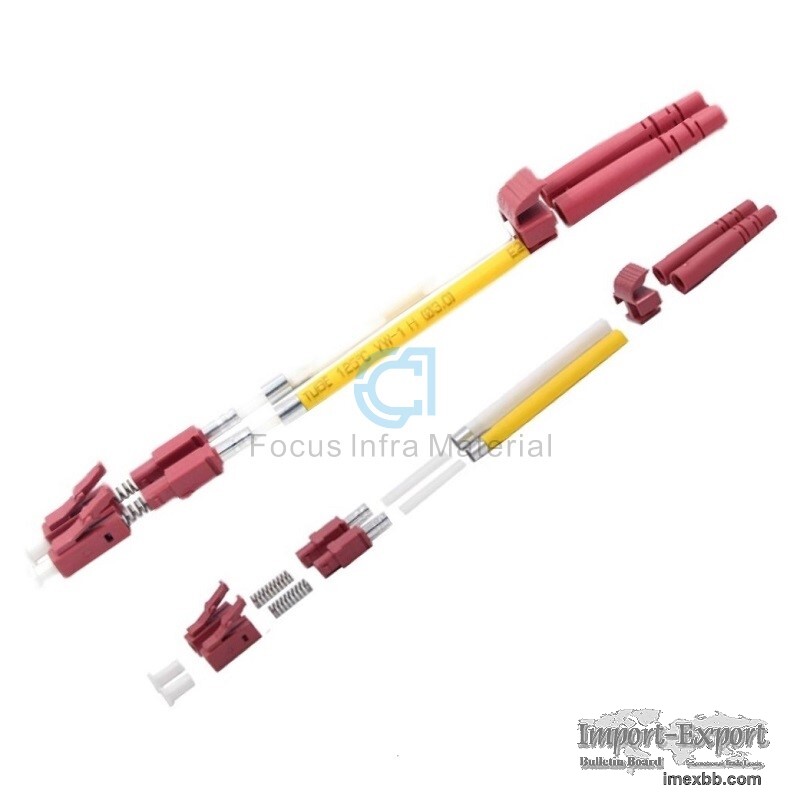

LC PC Om4 2.0mm 3.0mm Duplex Fiber Optical Connector Plastic Parts Connecto

Product Description:
The optical fiber connector is one of the most basic passive components in
the optical fiber communication.

There are difference ferrule materials (ceramic, plastic, metal), a variety
of body and boot color to choose.

Through the process of curing and polishing, etc., the connector is combined
with various of fiber optic cable and made into

different kinds of patchcord (jumper), which have been widely applied to the
CATV system, communications system,

FTTx system, Local Area Networks, Wide Area Networks, Metro,Test
equipment,Active device termination and so on.

Technical Parameter:

Fiber Type SM MM
Connector Type SC,FC,ST,E2000,LC,MU,DIN MTRJ SC,FC,ST,E2000,LC,MU
MTRJ
Insertion Loss(Typical) ≤ 0.2dB ≤ 0.4dB ≤ 0.2dB ≤
0.4dB
Insertion Loss(Max) ≤ 0.3dB ≤ 0.5dB ≤ 0.3dB ≤
0.5dB

Return Loss(Typical) PC ≥ 50dB ≥ 35dB -
UPC ≥ 55dB - -
APC ≥ 65dB - -
Durability(500ºC) 0.2dB
Temperature Stability 0.3dB
Operation Temperature -40ºC~+85ºC
Storage Temperature -40ºC~+85ºC

Application:
1. CATV
2. Telecom Network
3. Metro
4. Data processing



Features:
1. Low insertion Loss and Back reflection loss
2. RJ-45 style interface-
3. Polarized and color coded (TIA568-A&ISO 11801)
4. UL-rated plastic housing and boot
5. Compact, pull-proof design
6. Behind-the-Wall style short connector

Minimum Order: 1000 packs
