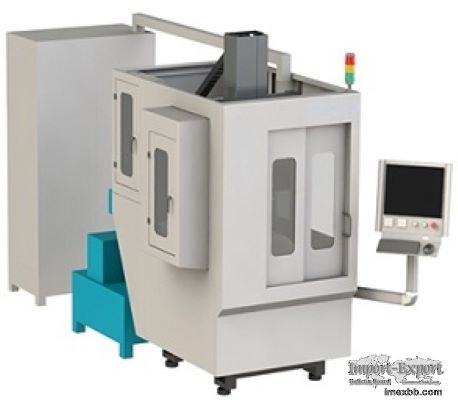

Latest 6 axis CNC Drilling EDM machine

I. Main Parameters of Latest 6 axis CNC drilling EDM machine



Model

TD430N

, Worktable size

φ200mm

Table travel(X×Y*Z)

400×300*400mm

W axis travel

400 mm

B axis rotation Angle

±110°

C axis rotation Angle

0-360°

C axis rotation table load

20kg

Max distance between worktable to electrode chuck

400mm

Max workpiece dimension

φ200×250mm

Electrode diameter

0.3-3.0 mm

Best roughness

1.6um

Recast layer thickness

0.02mm

Input/output interface

USB 、LAN、RS-232

Control type

Industrial computer

Screen

15″LCD touch-screen

Programming software

UG, CAD

Pitch compensation

Yes

X/Y/Z Positioning accuracy

0.010mm

X/Y/Z Repeated positioning accuracy

0.006mm

B/C axis positioning accuracy

15″
B/C axis repeated positioning accuracy

10″

Type of working fluid

Deionized water

Max. working current

30 A

Max. drilling speed

30-60mm3/min

Machine dimension

2300×2100×2500 mm




II. The machine characteristics:



1. It is mainly used for drilling small holes in complex spatial positions
of aerospace engine rings and blade parts.


2. It can drill various hardened materials such as high-temperature
alloys, titanium alloys, stainless steel, hard alloys, quenched steel, etc.


3. Its advantages are higher drilling speed, higher accuracy, better
surface quality, and larger depth to diameter ratio.


4. It has the function of automatic replacement of electrodes and guides.


5. It has the function of automatic programming of UG model spatial hole
positions.


6. It has functions of automatically changing the drilling hole position,
automatically trimming the electrode, automatically detecting the machining
zero position, automatically changing the gauge, automatically controlling
the machining depth, and automatically sending a message when the electrode
is used up, selecting any single hole for machining. The programming for
sample hole position collection can be trained here.


7. It has the function of automatic controlling and processing of the
working fluid conductivity.


8. It can use the simple electrodes to mill the waist shaped holes.


9. It supports the establishment of connected automatic production lines,
which can achieve higher productivity and automation levels.


10. It can be equipped with a contact probe, supporting automatic alignment,
detection and positioning, and automated production.


11. Various models of machine tools can be customized according to the
users’ special requirements.




III. Advantages of the machine



1. It is composed of main engine, CNC pulse power control cabinet,
deionized water treatment system, etc.

2. Main machine: composed of bed, column, X axis, Y axis, Z axis, W
axis, B axis, C axis.

3. CNC pulse power control cabinet: It is composed of industrial control
computer, CNC system, touch screen, servo motors drive, machine tool
electrical appliances, high-efficiency discharge pulse power supply, rocker
arm waterproof and antipollution stainless steel keyboard control table,
multi-function remote control hand box, etc.

4. Deionized water treatment systems: the 400 L stainless steel water
tank, filter system, to ion system, conductivity detection system, high
pressure water pump, etc.

Minimum Order: 1 sets
