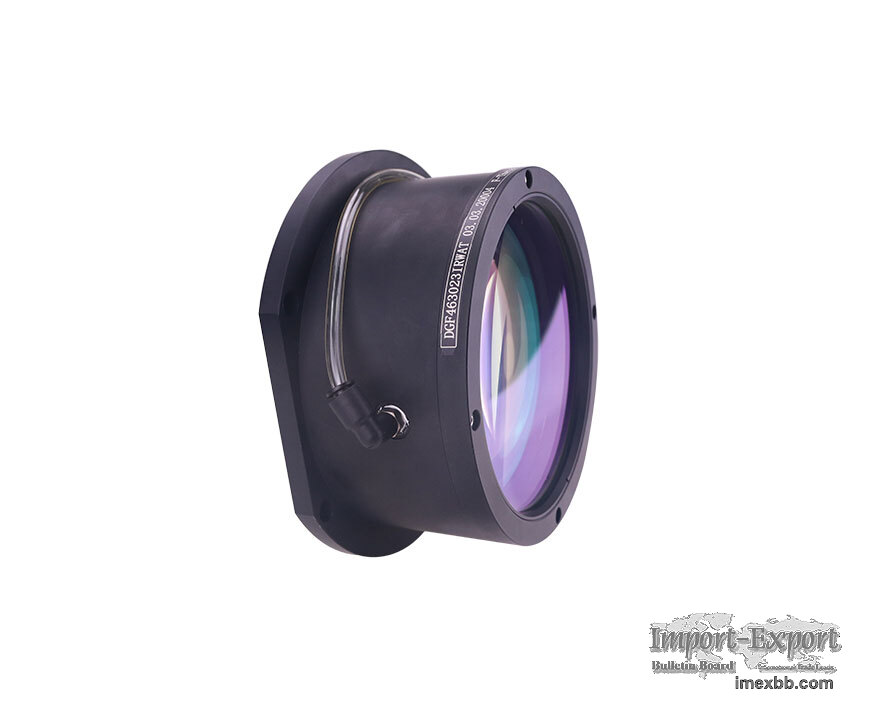

Laser Lens

Common Fθ lens is a series of general lens used in laser fields. The common F-
theta lens has developed into the 3th generation product after experiencing
continuous improvement of Optical Component Center. The materials of the 3th
generation product all belong to world-class domestic environmental materials.
So, the transmission rate and focal plane image distortion of the F-θ lens
have been greatly optimized. The 3th generation product is trying to extend the
marking range when compared with the previous product with the same outside
dimension. Except for F-theta lens, we also produce co2 laser lens, fiber laser
lens, laser optical lens, etc..

Types Of Laser Lens
F-theta Lens
Han's Scanner F-Theta lens series products are able to suit different laser
wavelengths.

Large View Field Fθ Lens
Large view field Fθ lens is a kind of special Fθ laser focus lens with larger
range of flat image field developed on the basis of common Fθ lens. With the
continuous development of laser processing field, equipment with larger
scanning range is needed in the market. Optical Component Center researched and
developed large view field Fθ lens with extremely large scanning range to meet
the market development. When the outside dimension is unchanged, the maximum
scanning range of this series of lens can reach up to 760 mm *760mm, which is
far higher than the international scanning range (maximum 500 mm *500 mm), thus
realizing perfect true large view field scanning.
How Does Laser Lens Work
Multiple-determining beam expander is a necessary optical device in laser
machine. Due to the laser emission characteristics and machine requirement, it
is necessary to shape and expand the emission light spot of the laser, thus
enabling the laser focusing system to get a larger image aperture angle,
improving the energy density at the focus point and improving the laser
processing effect and efficient. Additionally, the series of lens can be used
in stage show, square, landmark demo and city light project independently.
Optical Component Center researched and developed a series of beam expander
according to the actual needs, with the wavelengths covering 266nm, 355nm,
532nm and 1064nm. The multiples of the expanding can be developed according to
customer's needs.

Hansscanner provides galvo head, focusing lens for laser pointer, laser lens
focus, 18mm laser lens, laser diode focusing lens, znse focus lens,
galvanometer scanner, laser galvanometer and etc. If you want to know co2 laser
lens types or laser machine lens price, pleasecontact us.
