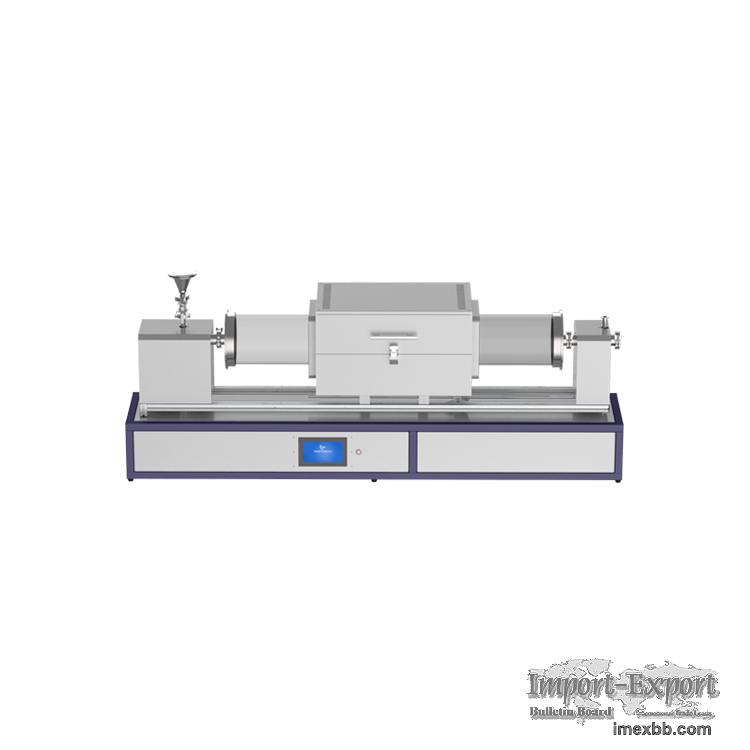

large-size 200mm diameter rotary tube furnace for lab

Rotary furnace/ Rotary kiln
This equipment is a rotary furnace, equipped with a large-size furnace tube with a
diameter of 200mm, and is equipped with a feeding mechanism and a rotating
mechanism to ensure continuous and uniform reaction.
The laboratory rotary furnace is widely used in lithium battery materials
(including lithium iron phosphate, lithium cobalt oxide, lithium manganese oxide,
lithium nickel cobalt oxide, cobalt oxide, cobalt powder, nickel powder and other
positive and negative electrode materials), rare earth Materials (rare earth
oxides, luminescent powder, polishing powder), magnetic materials, kaolin mineral
materials, glaze pigments, ceramic equipment,
Active refractory materials, catalyst materials (vanadium, vanadium tetroxide,
vanadium iron, etc.) carbonization, metal powder calcination, etc.
It is suitable for experiments or small batch production in experimental testing
institutions, universities and colleges, scientific research institutes, industrial
and mining enterprises.

Technical parameters:
Model: CY-SH40
Power supply: AC380V 50Hz 45kW
Productivity: 0-40kg/h
Max. working temperature: 500℃
Furnace tube size: φ200mm x 600mm
Tilt angle: 0~10° continuously adjustable
Rotation speed: 0~3.3rpm
Dimensions: 1800mm x 870mm x 1750mm
Temperature control accuracy: ±1℃
Temperature control method: AI-PID 30-segment process curve, with overheat and
thermocouple failure protection
Furnace tube material: High purity quartz

Minimum Order: 1 sets
