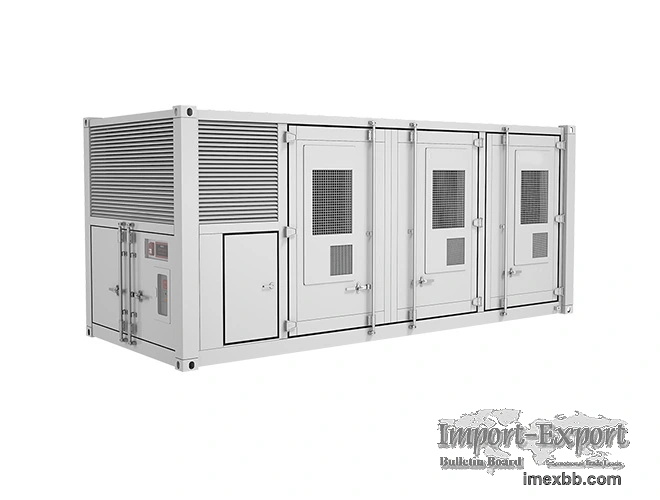

Large-scale Solar Energy Storage System Solution

ECE relies on advanced lithium iron phosphate battery technology, which can
provide large-scale energy storage systems, distributed energy storage systems
and microgrid systems. The large distributed solar optical storage and power
generation system is composed of photovoltaic modules, converter, AC-DC
junction boxes and commercial large scale solar battery storage batteries. The
modules of photovoltaic modules transmit electricity to energy storage
converters through photovoltaic junction boxes. The EMS system intelligently
manages the distribution and use of electricity, and delivers power in real
time according to the requirements of the use scenarios.These solutions can be
used for frequency regulation, voltage compensation, frequency regulation and
power quality management in the power system.

Detail of Large-scale Solar Energy Storage System Solution
The photovoltaic array is a complete power generation unit, consisting of any
number of photovoltaic modules and panels. Many 450W-580W photovoltaic modules
composed of crystalline silicon cells form photovoltaic arrays installed in
series on various types of supports.

Photovoltaic arrays are typically installed on residential roofs, commercial
roofs and ground utility scale systems (power stations or industrial parks,
etc.).

The battery system is composed of lithium iron phosphate class A cell with good
safety performance and long life. A single battery pack is 64V280AH, and 12
batteries are connected in series to form a 215 KWh battery cluster. Multiple
battery clusters are connected in series to reach the final required capacity
of the system. The battery system stores the photovoltaic power generation
energy or the trough energy of the power grid to release when the load is
needed, to meet a variety of application scenarios.

Battery status monitoring

Events record and storage function · Operation control

Insulation detection

Dynamicbalancing management

Protection alarms

Communication

Wide-range of DC input voltage

Short conversion time of full power from charge to discharge

Indoor or outdoor installation

Low voltage ride through

Reactive power adjustable, max.reactive power up to 500kVar

Active power derating

Film capacitor design

Controlling PCS and battery stacks to work together

Providing local monitoring and control operation interface

Providing remote monitoring and control operation interface

Recording and storing important operation parameters as accidents and failure
data.

A highly sensitive fire alarm system is equipped with temperature sensor and
smoke detector. The system has the functions of automatic fire detection,
automatic fire alarm, automatic fire extinguishing and automatic fire control
status. At the same time, it has self-inspection function, monitoring fault and
fault alarm to ensure the fire safety of energy storage power station.

Effective heat management of the heat dissipation of the energy storage system
to ensure that the system is in a constant temperature and humidity state, and
prevent the energy storage system capacity attenuation, short life reduction
and thermal runaway.
