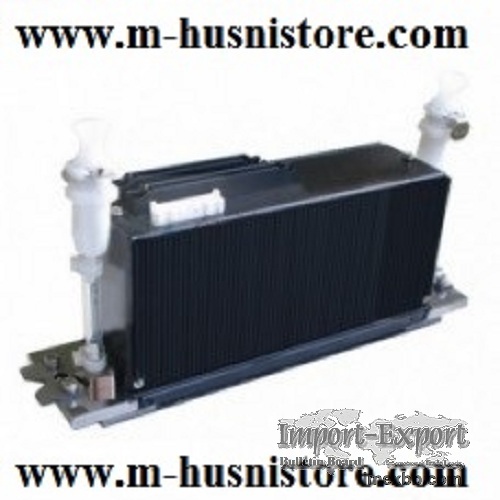

Kyocera Waterbased KJ4B-Z Printhead

Price : US $3,999.00
For more information about our product and our attractive discount please visit our official website : http://www.m-husnistore.com or please feel free to contact us in our official email : sales@m-husnistore.com
Payment Terms : T/T and Paypal
Packaging Details : We use box and carton ,Uses the high grade packing material. The high strength packing material reduced in the transportation process broken package phenomenon enormously, when leaving the plant uses the carrier to add the expansion membrane packing, guaranteed that the user obtains the optimum condition product.carbon less paper. And as per buyer requirement.
Delivery Time : depend the country

Kyocera Waterbased KJ4B-Z Printhead
This new generation Kyocera KJ4B-QA is designed is designed for high speed printing of water-based inks. It is a 600dpi one colour printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.

The Kyocera KJ4B-QA is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures. It’s unique ink channel design provides a stable ink supply.

Specifications :

Ink Type: Aqueous Ink
Dimensions: 200 × 25 × 59.3mm
Dry Weight: 420g
Total Nozzles: 2.656
Nozzle Pitch: 0.042mm
Standard Resolution: 600 x 600 dpi
Print Width: 108.25mm
Max. Drive Frequency: 30kHz
Drop Volume: 5, 7, 12 and 18pl
Max. Sprint Speed: 75m/min
Optimum Ink viscosity: 5.0 - 6.0 mPa*s

Remarks: original

Minimum Order: 1 sets
