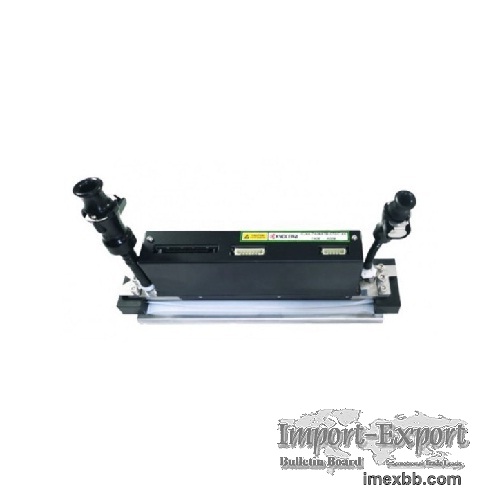

Kyocera UV Printhead KJ4A-TA

PRICE $ 5108

The KJ4A-TA printhead Series is designed for UV-curable inks or other high
viscosity inks. It is optimal for Label/Packaging, Sign Graphics, Offset
Surprint and others. It is a 600dpi one colour printhead with a maximum
drive frequency of 20kHz. It delivers high quality with a small drop volume
of 6pl at 50 m/min by making use of 2,656 nozzles arranged across 108.25 mm
wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.
The complete part number is KJ4A-TA06AT.

The Kyocera KJ4A-TA is equipped with internal filters that eliminate
foreign objects in ink and an internal heater that adjusts the impact of
external temperatures. It’s unique ink channel design provides a stable ink
supply.

The following items are expressly excluded from warranty coverage:
defects in printers related, in any way, to the use of any non-original or
DIGINK inks or ink cartridges and nozzle clogging
defects related to misuse, abuse, accident, neglect, lack of use, or
improper storage when not in use for extended periods
defects related to failure to perform periodic maintenance as specified in
the user documentation; operation for unintended purposes
defects related to improper loading of media
all other defects, failures or damage not considered manufacturing defects
defects related to third-party applications, software, parts, components,
or peripheral devices, including any bulk ink system.
defects that are merely cosmetic in nature.
Specifications
Ink Type: UV Ink
Dimensions: 200 × 25 × 57.9mm
Dry Weight: 420g
Total Nozzles: 2.656
Standard Resolution: 600 x 600 dpi
Print Width: 108.25mm
Max. Drive Frequency: 20kHz
Drop Volume: 6, 7, 11 and 14pl
Max. Sprint Speed: 50m/min
Optimum Ink viscosity: 6.0 - 7.0 mPa*s
This printhead carries a manufacturer warranty.
Country of origin : Japan

Minimum Order: 1 pieces
