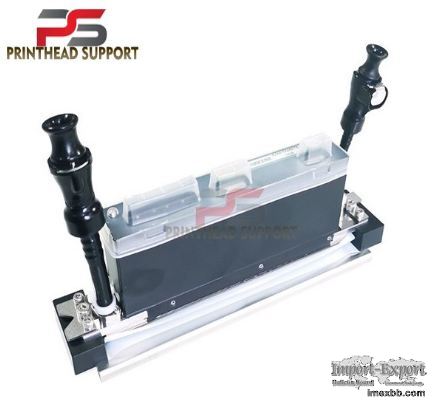

Kyocera KJ4A-AA 600dpi Inkjet Printhead For UV Ink

Price :$1,976.00 (Tax included)
New & Original Kyocera KJ4A AA Printhead - (600 dpi - 20KHz) Use For UV ink


The KJ4A-AA printhead Series is designed for UV-curable inks or other high
viscosity inks. It is optimal for Label/Packaging, Sign Graphics, Offset
Surprint and others. It is a 600dpi one colour printhead with a maximum
drive frequency of 20kHz. It delivers high quality with a small drop volume
of 3pl at 50 m/min by making use of 2,656 nozzles arranged across 108.25 mm
wide print swathe.

Specifications :
Ink Type: UV Ink
Dimensions: 200 × 25 × 57.9mm
Dry Weight: 420g
Total Nozzles: 2.656
Standard Resolution: 600 x 600 dpi
Print Width: 108.25mm
Max. Drive Frequency: 20kHz
Drop Volume: 3, 6, and 13pl
Max. Sprint Speed: 50m/min
Optimum Ink viscosity: 6.0 - 7.0 mPa*s

The Kyocera KJ4A-AA is equipped with internal filters that eliminate
foreign objects in ink and an internal heater that adjusts the impact of
external temperatures.

Printer compatibility :

Dilli NEO SUN HB 2504D-W2XL

NEO SUN HB 2504 D-DXL

Minimum Order: 1 pieces
