KYN61-40.5 35KV AC Drawout Type Metal Clad Switchgear

Product Description

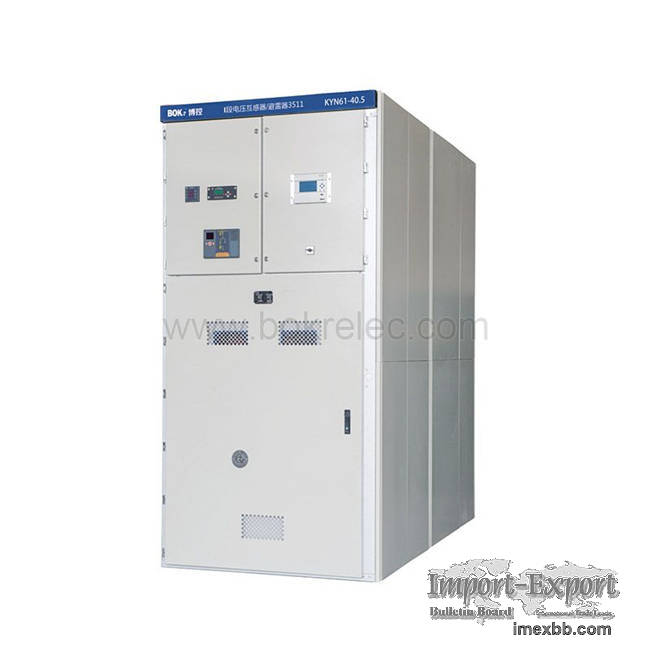

KYN61-40.5 air-insulated metal-clad drawout type switchgear is a kind of MV
switchgear. It is designed as drawout type module type panel, and the drawout
type part is fitted with VD4-36E, VD4-40.5 drawout type vacuum circuit breaker
manufactured by Cooper Nature company. It can also be fitted with isolation
truck, PT truck, fuses truck and so on. It is applicable to three phase AC
50/60 Hz power system, and mainly used for the transmission and distribution of
electrical power and control, protection, monitoring of the circuit.
Standards and specifications
IEC62271-200 A.C. metal enclosed switchgear and controlgear at the rated
voltage of 1kV~35k V
IEC62271-100 High voltage switchgear and controlgear-Part 100:Hi gh voltage
A.C. circuit breaker
GB3906 3.6~ 40.5kV alternating current metal enclosed switchgea r and
controlgear
GB1984 High voltage alternating current circuit breaker
GB/T11022 The common technical requirements of high voltage switchgear and
controlgear
Service environment
a) Air temperature: -25℃~+40℃
b) Humidity: Monthly average humidity 95%; Daily average humidity 90%.
c) Altitude: ≤ 2500m
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor
etc.
e) No frequent violent shake.
