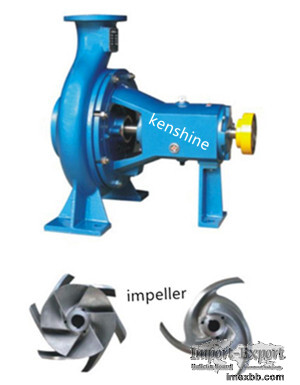

KS Open impeller centrifugal pulp pump

Fully open type impeller centrifugal pulp pump is a new generation of pulp pump
developed on the basis of digestion and absorption of foreign advanced pump
products, combined with the requirements of domestic paper making and pulping
enterprises. It has the advantages of high efficiency, anti-clogging performance,
no leakage during operation, easy installation and maintenance, etc.
Scope of application
Pulp and paper, sugar starch, industrial sewage, environmental protection projects
Traffic: 30-3000 m3 / h
Head: 10-100 - m
Pulp concentration: not more than 6%
Operating temperature: no more than 120 degrees Celsius
Structural characteristics of
1. The pump is a backdoor pull out structure, so it is unnecessary to remove the
pipeline during maintenance
2. The impeller adopts three-blade (or six-blade), open-type impeller, with high
efficiency and no axial thrust compensation, easy maintenance and no blockage
3. The pump shaft is supported by imported bearings lubricated with oil or grease.
Cylindrical roller bearings are mounted at the pump end, and two angular contact
ball bearings are mounted back-to-back at the drive end. Increase the size of the
shaft to ensure no vibration when the pump is operated.
4. Impeller adopts precision casting and dynamic balance test.
5. Seal: single end mechanical seal, packing seal

Minimum Order: 1 sets
