KQG2H04-02S Pneumatic Pipe Fittings 1/4 Inch Air Compressor Fittings SS316

SMC KQG2H04-02S

SS316 High-Precision Pneumatic Pipe Fittings

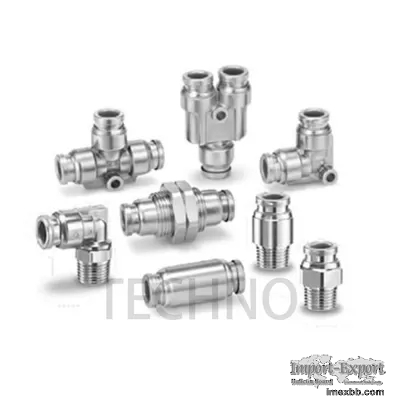

SMC KQG2H04-02S Pneumatic Pipe Fittings 1/4 Inch Stainless Steel 316
Automation




Product Description:
Pneumatic Pipe Fittings are air compressor fittings specially designed for
air compressors and pneumatic systems. They are easy to assemble and provide
reliable connection between pipes. With a working temperature ranging from
-5 to 150℃ and a pressure test of 1.5 times the working pressure, these
pneumatic pipe fittings are made of SS316 material with sizes ranging from
1/8 to 1/2 inch and are available in carton or as the client requires. These
air compressor fittings are highly reliable and durable to ensure a safe and
secure connection. These pneumatic connectors offer exceptional performance
and are ideal for a variety of industrial, commercial and residential
applications.






Features:
This product is compact and lightweight, with the following dimensions:
capacity around 30% shorter, and the weight around 62% lighter when compared
with KQGL06-01S.

For materials, metal parts are constructed with stainless steel 316, and
seal parts with special FKM.

It is applicable with various of tubing materials, such as FEP, PFA, Nylon,
Soft nylon, Polyurethane, and Polyolefin.




Technical Parameters:
The technical parameters of our product include:

The compatible fluids are air, water and steam (Note 2).
The operating pressure within the product ranges from -100 kPa to 1MPa (Note
3, Note 4).
The proof pressure reaches up to 3.0MPa.
The compatible ambient and fluid temperature is -5°C to 150°C (Note 5,
Note 4). Freezing is not allowed.
The product comes with grease-free specification.
The threads are sealed with sealant applied.



Applications:
SMC's KQG2H04-01S Pneumatic Pipe Fittings are designed to deliver
air/gas/water/oil in a variety of applications. Made from high-grade SS316
material, these fittings are capable of withstanding pressure up to 1Mpa and
temperatures from -5 to 150℃. Besides, they are a perfect choice for air
compressor fittings, pneumatic joints or other pneumatic pipe fittings. This
product is certified by CE and the minimum order quantity is 10. It can be
delivered within 1-7 work days after payment. Moreover, SMC promises to
provide 5000PCs per month to meet customers' needs. In addition, each of the
pipes will be tested 1.5 times of the working pressure to ensure maximum
safety and reliability.




Support and Services:
Pneumatic Pipe Fittings Technical Support and Service

We provide comprehensive technical support and service for our Pneumatic
Pipe Fittings. Our team of experienced engineers and technicians are
available to provide consultation, troubleshooting, and repair services. We
offer a full range of services including installation, maintenance, and
upgrades. Additionally, we offer online and telephone support, as well as
instructional videos and product documentation to ensure your Pneumatic Pipe
Fittings are working properly.

If you have any questions or need additional support, please contact our
customer service team and we will be happy to assist you.
