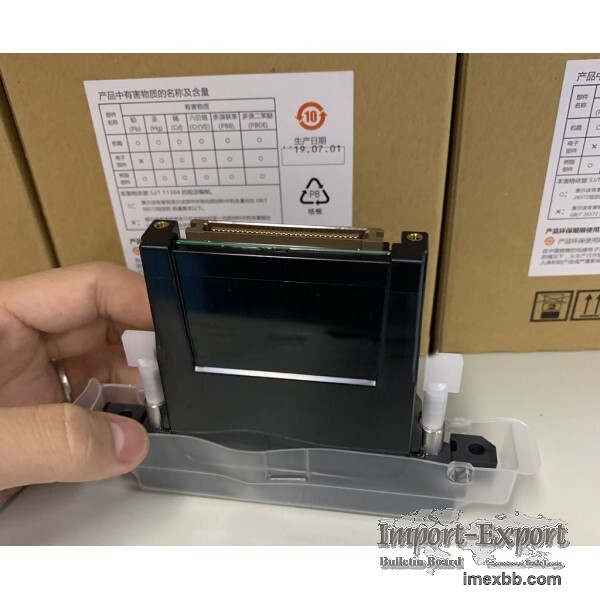

Konica Minolta KM1024i SHE Printhead Brand New

Konica Minolta KM1024i SHE Printhead Brand New
Konica KM1024i SHE 6PL Printhead
The Konica Minolta KM1024i SHE printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted.

The high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. The Konica Minolta KM1024i SHE printhead offers a Maximum Drive Frequency of 60kHz, approximately 3 Times greater than that of the KM1024 Series, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing.

Environmentally-considerate Approved Green Product
The Konica Minolta KM1024i SHE printhead incorporates only approximately one-third of the petroleum-derived materials and toxic chemicals used in the current KM1024 Series. In addition, the nozzle unit surface area is the same as that of the KM1024 Series.

Specifications
• Technology: Piezo Drop On-Demand
• Native Resolution: 360 dpi
• Cal. Droplet Size: 6 pl
• Max. Drops in Greyscale: 8 drops
• Tot. Amount of Nozzles: 1024 (256 nozzles per line)
• Print Width: 72 mm
• Typical Firing Frequency: 50 Khz
• Max Firing Frequency: 60 kHz
• Ink Compatibility: UV Inks
• Heater: integrated
• Dimensions: W131mm x D18mm x H94mm
• Weight: Approx. 150g

Printer compatibility

Allwin S320UV
Allwin S500UV
Allwin UVT 2030
Allwin UVT 2512
Allwin UVT+ 2030
Allwin UVT+ 2512
Docan H1000
Flora HJ 5000UV
Human Digital Technology M-JET
IIJ ColourPrint-72
JHF Vista R3300
JHF Vista R6000
JHF Vista V300UV
JHF Vista V500UV
Optimum Digital KR Hybrid UV
Skyjet FT2512i
Skyjet FT3020i
Taimes T50UV
Yicong YD2512-KD

Minimum Order: 1 pieces
