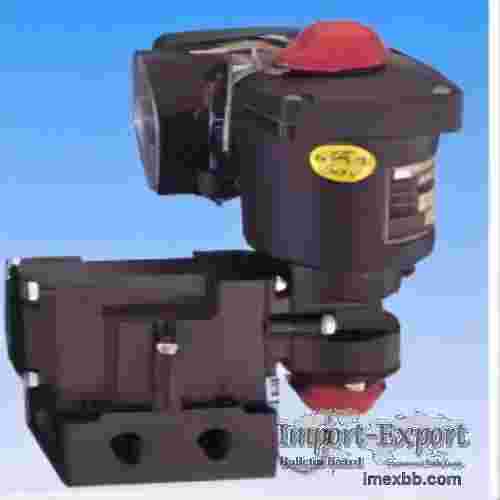

Konan 4-port Solenoid Valves for Heavy-Duty Spool valve MVPE1

Heavy duty type solenoid valve with reliable functions suitable for severe
operating conditions.
Solenoid with strong suction power
Pilot valve resistant to contaminated air
Highly reliable control mechanism
Model code
Closed center MVPC1 MVPC2
Center open to exhaust MVPO1 MVPO2
Center open to pressure MVPE1 MVPE2
Port size Rc3/8 Rc1/2 Rc3/4 Rc1 Rc1 1/4 Rc1 1/2
10A 15A 20A 25A 32A 40A
Working pressure 0.12～0.7MPa
Ambient temp. -20～50℃
Effective area of valve 35mm 2 60mm 2 140mm 2 180mm 2 250mm 2 350mm 2
Rated voltage AC100,110,200,220V(50/60Hz) DC24,48,100,110,200,220V
MVW2-8A –AC***
MVD812K-02-8A-NO.11-DC110
MVD812K-02-10A-NO.11-DC110
, YS336TF04L8BC9
S-MVS2-CD
S-MVS2-EF
MVD813 , K-02-10A–DC24
MVS2-20A-AC110
4N3S102K-W6  ,
453S202C-E2K -NO.12-DC24
MVS2N-08-E3K-20A-NO.**-DC48
MV , S813K-02-10A-NO.**- DC48
MVS812K-02-10A-NO.8 - DC125
S202JF02L7DG4
MVW 7NR 08D-25A-DT-DC24V
MVW 344N 08D-25A-DT-B-DC24V
P/N#453S102N-D6-G30555

Minimum Order: 1 pieces

Click to Enlarge
