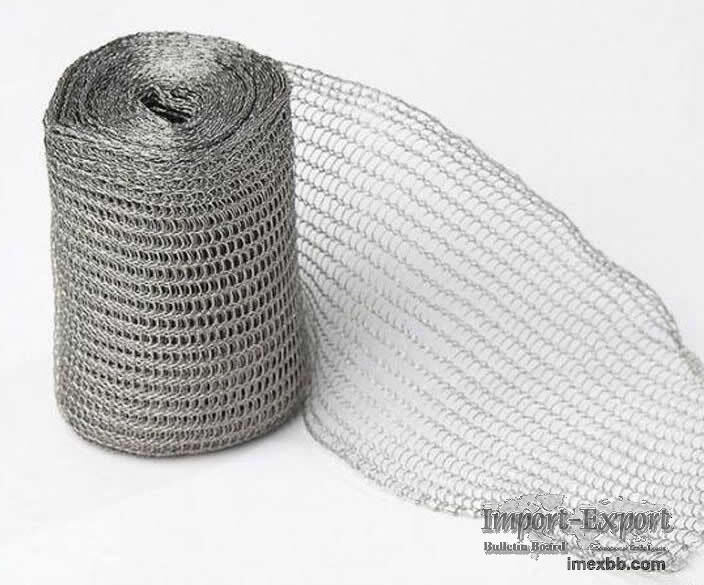

Knitted Mesh Tubes

KNITTED WIRE MESH TUBING - STAINLESS STEEL KNITTED MESH TUBE, COPPER KNITTED
WIRE TUBE
We supply Wire Mesh Tube in a range of metal materials (stainless steel and
copper mainly ), in flattened tube or rounded tube, single layer or multi layer
to meet specific requirements. Stainless and copper knit wire mesh tubes are
widely used in insulation, extrusion molding, in the automotive industry and
electronics industry. Exported to Ireland, USA, Norway, Belgium and other
countries.


Knitted Wire Tube / Mesh of SS 304 and SS 316
304 knitted stainless steel mesh 760 mm tube, 0.28 mm wire dia x 50 m roll, or
316 stainless steel wire, up to 1020 mm tube width

General specifications:
Tube (Not Single Layer) - Diameter 375mm
Rounded (Not Flattened)
Thickness of the wire: 0.3mm
Width of the wire: 0.6mm
Width of the roll: 590m
Material: SS304



Mesh Tube of Compressed Type
Knitted Wire Tube Axial Compressed with Needle Count 20
Length of umcompressed tube: 83 +/- 5 mm
Diameter of uncompressed tube: 62,5 +/- 3 mm
Material:
C9D (1.0304), C4D ( 1.0300 ), EN10016-2 (0)
UNS G 10080 (9)
Wire dia.: 0,76 +/- 0,02

Knitted Wire Tube Axial Compressed with Needle Count 22

Length of umcompressed tube: 70 +/- 5 mm
Diameter of uncompressed tube: 62,5 +/- 3 mm
Material :
C9D (1.0304), C4D ( 1.0300 ), EN10016-2
Wire Dia : 0,6 +/- 0,02
