knife pleating machine

knife pleating machine
knife pleating machine
normal slitting &pleating machine
knife pleating machine
slitting marking pleating machine

primary filter pleating machine
automatic knife pleating machine
automatic knife pleating machine
HEPA filter making machine
HEPA filter pleatingmachine
automatic punching and pleating production line
punching pleating production line

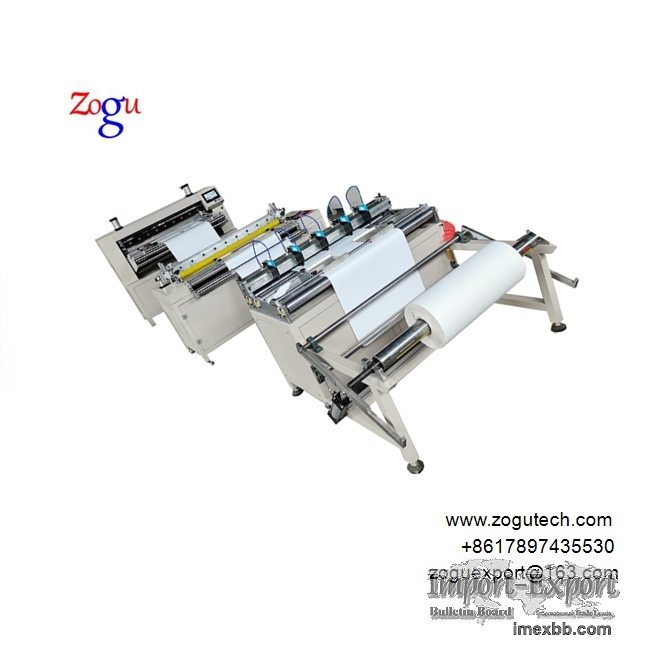

Filter paper per slitting marking pleating machine line


Per slitting

1

width

32-600mm
,
2

Feeding speed

0.5-12m/min

3

Air pressure

0.6Mpa

4

Power

0.75kw

5

weight

450kg

6

Overall dimension

900x1300x1100

7

vol , tage

380v, 50hz, 3phase

Marking machine

8

width

600mm

, 9

Mark distance

8-60mm

10

Mark speed

20-150times/min

11

powe , r

1.8kw

12

control

PLC +servo motor

13

Overall dimensions

900*800x1000

14

we , ight

350kgs

Single Pleating machine

15

width

600mm

16

Pleating height

8-55mm

17

Pleat speed

20-110pleat /min

18

Temperature range

0-170℃

19

Heating motor

3kw

20

motor

1.5 , kw

21

Air pressure

0.6Mpa


knife pleating machine
automatic knife pleating machine
HEPA filter paper pleating machine-PP/fiberglass

1 Pleat height 10-55mm

2 Width 650mm

3 Speed 3-10m/min

4 Glue line 2x24

5 Glue injection capacity 50kgs

6 Air pressure 0.6 Mpa

7 Power 26.68kw

8 Material PP

9 Voltage 380V,50Hz, 3 Phase

10 Dimensions 10000x1500x1550mm

1 Pleat height 20-100mm

2 Width 650mm

3 Speed 8m/min

4 Glue line 2x24

5 Glue injection capacity 50kgs

6 Air pressure 0.6 Mpa

7 Power 29.7kw

8 Material: Glass fiber

9 Voltage: 380V,50Hz, 3 Phase


10 Weight: 1300kgs

HEPA FILTER MAKING MACHINE
HEPA filter making machine
zoguexport@163.com +8617897435530 www.zogutech.com

Minimum Order: 1 sets
