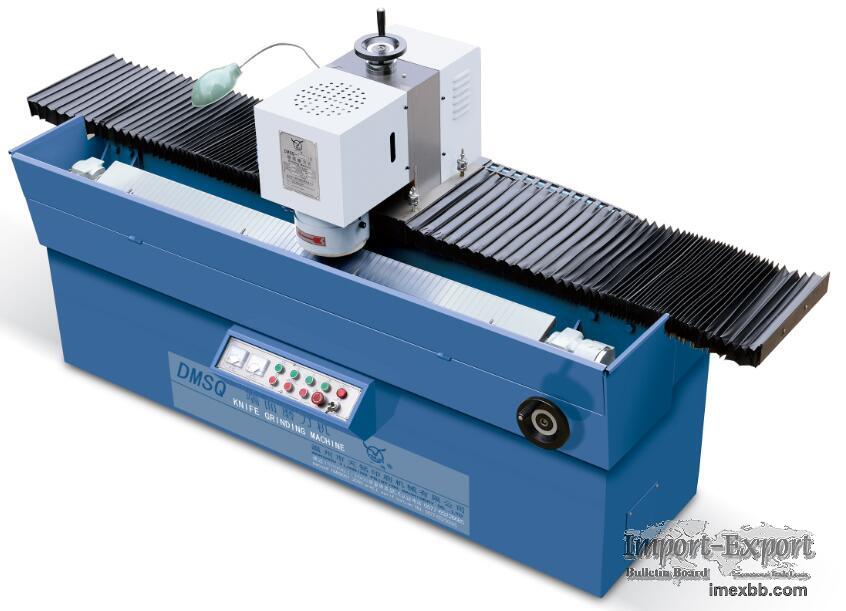

Knife Grinding Machine Model DMSQ-ZB

Product description:
It is an electro-magnetic chuck type end surface knife grinding machine with
electro-magnetic chuck loading knives features, it enhances the working
efficiency greatly and is applicable to mill a variety of plane cutting tools.
It is an ideal grinding equipment for the printing, paper, wood, plastic
leather, toilet paper and other industries.

Main feature:
- Electric magnetic chuck: more uniform pressure and more straight-line
grinding make more efficiency
- Delay demagnetization devices: more secure and reliable during grinding
- With centralized greaser: lubricating main box, lift pallet and elevated
screws
- Grinding head equipped with Y series three-phase asynchronous motor
- Max. grinding width: 180mm on 22° angle
- Fixed grinding head stroke
- The main transmission adopts rack and pinion transmission
- Knife rest adopts turbo worm transmission, can rotate freely
- Cantilever-type machine body structure: lathe bed casts with mezzo forte cast
iron
- Linear guide
- Rotation angle of table: adjustable 0 ~ ±90 degree of knife rest
- With dust cover device

Optional device:
Scraper (Doctor blade) clamp: dedicated for toilet paper device (extra cost)
