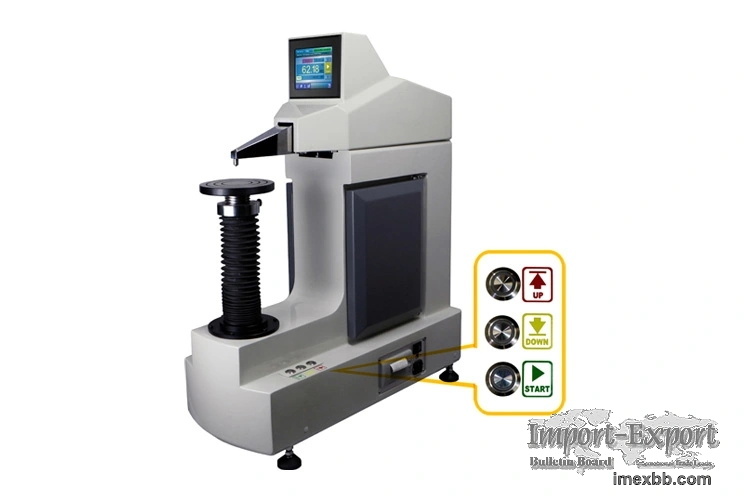

KHT800-A Automatic Rockwell Hardness Tester

KHT800-A is a new shaped, advanced Automatic rockwell tester, which combine
previous function with stable design, easy operation. So it is a popular one in
bench hardness tester with highly accurate, automatically, easy installation,
quick test's advantages.

Features of KHT800-A Automatic rockwell tester for sale
The application of test forces is managed through a sophisticated closed-loop
control system, incorporating a load cell, a DC motor, and an advanced
electronic measurement and control unit, thereby eliminating the need for
conventional dead weights. This modern approach guarantees exceptionally
precise measurements for all test loads, maintaining an accuracy within 0.5%.

Thanks to its plug-and-play technology, installation is significantly quicker
and easier compared to the traditional machines that rely on weights.

With its automated Z-Axis functionality, initiating the test is as simple as
pressing the START button. The machine autonomously handles the entire testing
process, adjusting for variations in sample size, positioning, and the
separation between the indenter and the sample surface. The sample is
automatically elevated to align with the indenter, ensuring the test is
completed without manual intervention.

This method surpasses the precision of manual wheel lifting or dead weight-
based machines, which are susceptible to variability based on user handling..

The machine’s design includes an elongated “dolphin nose,” enabling a
vertical test height of 300mm and a throat depth of 220mm.

Constructed with an integrated casting body and a broader base, the machine
boasts enduring stability.

Additionally, it is equipped with an in-built micro-printer and a USB
connection for PCs, facilitating convenient data documentation and transfer.

Functions of KHT800-A Automatic Rockwell Hardness Tester
KHT800-A Automatic Rockwell Hardness Tester

Regular Rockwell hardness tester for metal and plastic material.

Horizontal dolphin nose Indenter is suitable also for internal and external
testing.

Testing on surfaces difficult to reach. Testing internal surface of rings and
tubes.

Provided with many features such as high measuring precision, wide measuring
range with 15 Rockwell scales.

The tester is suitable for testing of carbon steel, alloy steel, cast iron, non
ferrous metal.

Automatic testing cycle: Lifting of part, pre-loading, loading, dwell,
unloading, results will be finished automatically.

Measuring results digitally displaying and can be printed, or transmitted to
external computer automatically by USB port.

Test HR value can be convert to the value of HB, HV, HK and σb value.

The tester meets all the following standard such as ISO 6508-2, ASTM E18.

For more information about rockwell hardness tester pdf and rockwell hardness
tester diagram, please feel free to contact us!
