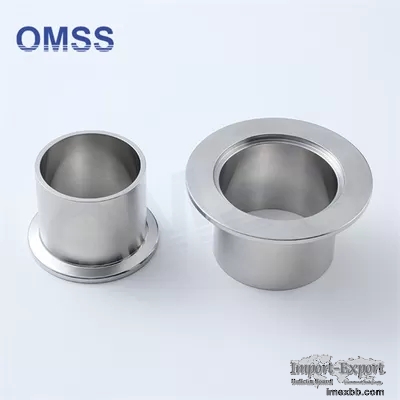

KF 25 Car Vacuum Pipe Fittings Stainless Steel Weld Stub Vacuum Flange Fitt

PRODUCT DESCRIPTION
ISO-KF 25 Stainless Steel Weld Stub Flange Vacuum fittings



Product Name: ISO-KF 25 Stainless Steel Weld Stub Flange Vacuum fittings
Material: SS304/SS316L
Seal Material: Viton
Availably Size: KF10-KF50
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical,
etc


Specifications:

KF 25 Car Vacuum Pipe Fittings Stainless Steel Weld Stub Vacuum Flange
Fittings 0

Features:



KF 25 Car Vacuum Pipe Fittings Stainless Steel Weld Stub Vacuum Flange
Fittings 1



The ISO-KF components are assembled by inserting a centering ring between
the two flange faces, then securing the assembly with a flange encompassing
clamp.

There are a variety of clamp choices in the Series 31 line. The wing-nut
clamp is hand tightened until metal contact is felt. A version of the wing-
nut clamp with a washer is also available. The toggle clamp is convenient
and easy to use. The clamp provides enough sealing force to fully compress
the O-Ring, so that the flanges and the centering ring are metal to metal.
The heavy-duty spring supports the full range of production tolerance
variables. The self-adjusting clamp locks in a positive method. A pin can be
inserted to prevent accidental release of the toggle lever. The toggle
clamps are ideal for situations where the clamp must be removed frequently,
like leak testing or gauge calibration. The Series 31 ISO-KF line also
includes bulkhead clamps. They are used to attach an ISO-KF flange directly
to a chamber or base plate. The two-part, bolted clamp fits over the flange.
A centering ring assembly is needed between the flange and the opening. The
bulkhead clamp kit includes the two-piece clamp, bolts and washers.
