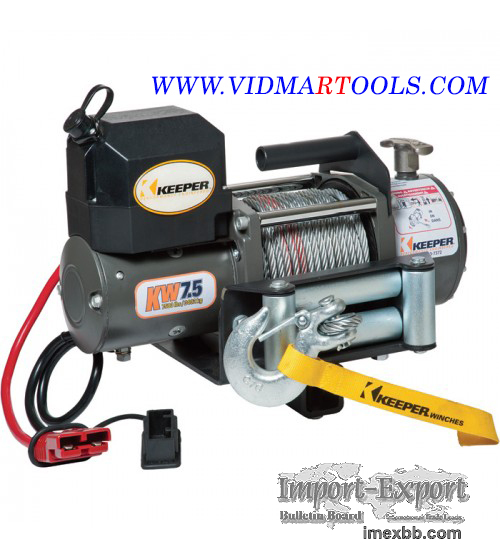

Keeper Rapid Mount 12 Volt DC Powered Electric Winch - 7500-Lb. Capacity

The Keeper Rapid Mount Electric Winch with special Keeper Rapid Mount attachment lets you quickly slide this 7500-lb. capacity, 12V winch into any Class III, 2in. receiver hitch for easy setup. Operates off a vehicle's 12V system. 180:1 gear ratio and 30 FPM line speed.


What's Included

(1) Electric winch (1) Harness with quick connects (1) Receiver hitch bar (1) Handheld remote (2) Wireless controls (1) Wireless receiver (1) Handsaver (1) Mounting plate



Features + Benefits

7500-lb. pulling capacity
12V DC, 4.5 HP heavy-duty series wound motor
72ft.L x 5/16in. dia. wire rope with clevis hook and 4-way roller fairlead
9 FPM full load drawing/356 Amps
30 FPM no load drawing/25 Amps
Hand-held remote HD LED light on 15ft. lead
180:1 gear ratio
3-stage, full metal high-speed planetary gear box with case hardened gears
Full load-holding automatic brake for safety
Freewheel clutch
Integrated sealed solenoid switching is designed to work in the worst conditions



Key Specs
Item# 44628
Brand Keeper
Manufacturer's Warranty Lifetime Limited Warranty
Ship Weight 63.0 lbs
Volts 12
HP 4.5
Line Pull (lbs.) 7,500
Line Speed (FPM) 30
Gear Train High-speed 3-stage planetary
Gear Ratio 180:1
Clutch Freewheel
Braking Automatic mechanical full load
Switching Method Sealed solenoids
Remote Length (ft.) 15
Rope Type Galvanized wire
Rope Size L x dia. (ft. x in.) 72 x 5/16
Fairlead Type 4-way roller fairlead
Battery Leads 2-ft. of 2-ga. w/QC attached to winch, 6-ft. harness of 2-ga. w/QC, battery leads
Mounting Hardware Included Yes
Mounting Bolt Pattern L x W (in.) 6 3/5 x 4 1/2
Dimensions L x W x H (in.) 18 1/2 x 6 3/10 x 9 1/2
