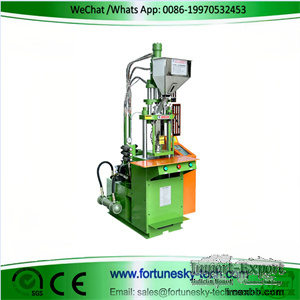

JY-160S2 Plastic Injection Molding Machine

Unleash Peak Efficiency with the Advanced JY-Series Plastic Injection Molding Machine
The JY-Series Plastic Injection Molding Machine redefines efficiency in plastic product
manufacturing. This feature-rich machine delivers exceptional performance for a wide range
of applications, including plugs, stationery, toys, LED lights, cellphone shells, and various
daily necessities.

Key Advantages:

Quiet Operation: Experience a more comfortable work environment with the machine's low
noise operation.
Stable Pressure Control: Ensure consistent and high-quality results with the machine's
precise and stable pressure control system.
Energy-Saving Design: Minimize energy consumption with the machine's efficient power-
saving features.
Broad Application Range: This versatile machine is suitable for manufacturing a diverse range
of plastic products.
Functional Highlights:

Straight Screw Type Ejection Device: Enables efficient and reliable part ejection.
Two (Three) Phase Temperature Control: Provides precise control over various molding
stages for optimal product quality.
Stepless Adjustments: Fine-tune ejection speed, back pressure, and screw speed for a
variety of precision molding tasks.
Bottom Mold Fixed, Upper Mold Moving Design: Well-suited for embedded plastic injection
molding.
Low-Pressure Opening Mold Device: Protects molds from damage during opening.
Technical Specifications:

Feature Model JY-160S2 JY-200S2
Injection Unit
Screw Diameter (mm) 26 28
Injection Pressure (kg/cm³) 1183 1019
Theoretical Shot Volume (cm³) 55.7 64.6
Max. Shot Weight (PS) (g) 950 867
Safe Shot Weight (PS) (g) 717 677
Max. Shot Weight (PS) (cm³/sec) 34.6 40.7
Injection Rate (mm/sec) 105 105
Screw Speed Max (rpm) 0-215 0-200
Nozzle Contact Force (Tons)
Nozzle Retraction Stroke (mm)
Number of Temperature Control Zones 2 2

Feature Model JY-160S2 JY-200S2
Clamping Unit
Clamping Force (Tons) 15 30
Platen Size (mm) 450 x 280 480 x 310
Distance Between Tie Bars (mm) 265 295
Min. Mold Height (mm) 100/25 100/30
Opening Stroke (mm) 190 180
Max. Open Daylight (mm) 290/215 280/210
Ejector Force (Tons) 1.3 1.3
Ejector Stroke (mm) 35 35

Feature Model JY-160S2 JY-200S2
Power/Heating Unit
Max. Hydraulic Pressure (kg/cm³) 140 140
Pump Output (L/min) 17.5 29.5
Oil Reservoir Capacity (L) 180 100
Cooling Water Consumption (L/hr) 400-600 400-600
Pump Motor Power (kW/HP) 2.2/3HP 3.75/5HP
Barrel Heating Power (kW) 1.8 1.8
Total Weight (kW) 4.2 5.5

Minimum Order: 1 pieces
