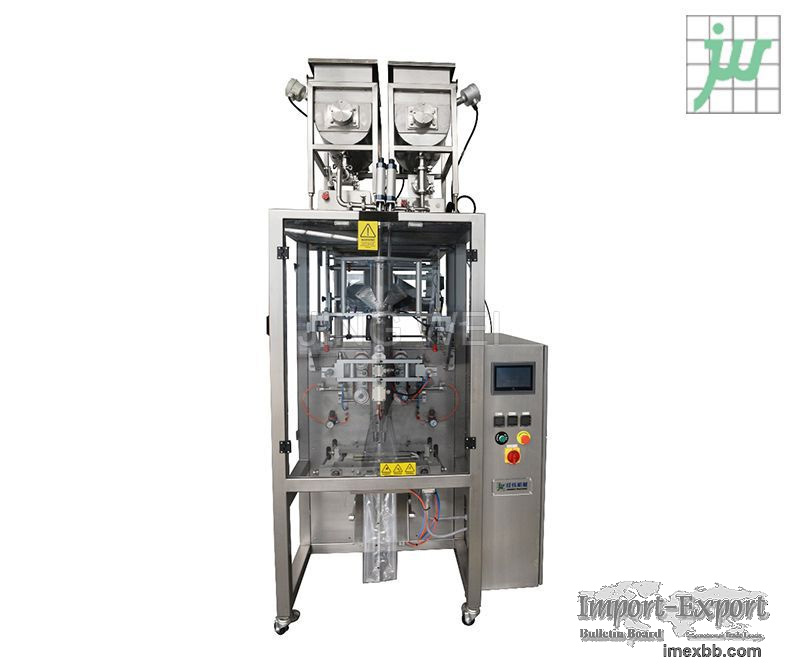

JW-SL720 Automatic Pillow Type Filling and Packing Machine

JW-SL720 Automatic Pillow Type Filling and Packing Machine
This back sealing VFFS packing machine is one of the models in the “medium bag
machine “series. It is suitable for various material packing more than 100
gram.It is mainly for the packaging of various materials with a bag capacity of
more than 100g.It can equipped with a variety of metering feeding structure
such as volumetric type ,auger filling type,piston pump type ,drawer type and
multi-header weighing type.In terms of bag forming ,there are also diversified
packaging forms available: such as pillow bag ,three side bag ,hanging hole
bag,triangle bag and etc.

Advantage & Features
1. Easy Operation, PLC control, HMI operation system, simple maintenance.
2. Filling: multi-header filling for solid material; auger filling for powder
material; And Pneumatic metering pump filling for sauce and liquid material.
3. It can be Nitrogen filled packaging such as potato chips packing.
4. Machine material: SUS304
5. Saw Teeth cutting &Flat cutting.
6. Bag Length setting to achieve different size packing.

Packing Application
Suitable for packing snack foods like pop corn, shrimp chips and etc; nuts such
as peanut, walnuts and etc. Chinese herbal pieces or strips; Hot pot sauce,
flavor sauce, seasoning oil and etc.

Technical Parameters
Packing Speed 5-30 bags/minute (depending on filling and bag material )
Filling capacity 500-5000ml
Pouch length 100-600mm
Pouch width 250-350mm
Sealing type back sealing
Sealing steps three steps
Film width 520-720mm
Max.rolling diameter of film ≤400mm
Dia of film inner Rolling ¢75mm
Power 3.5KW, three-phase five line, 50Hz
Compressed air 0.4-0.6Mpa, 350NL/Min
Machine dimensions (L)1400mm x(W)1300mm x(H)2100mm(Exclude the hopper)
Machine weight 700 kg
