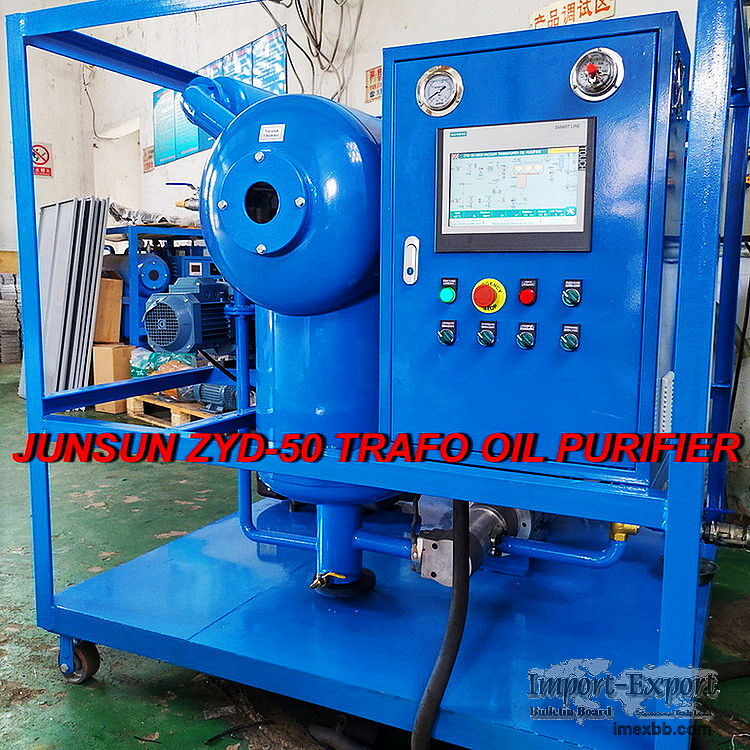

JUNSUN ZYD-50 PLC&HMI Controlled 3000 L/HR Transformer Oil Treatment Plant

1. Double stage high vacuum pumping system: except the oil-sealed rotary vane
vacuum pump, this machine is also equipped with a mechanical booster vacuum
pump, so it has faster vacuum-pumping speed and can reach a very good
ultimate vacuum.

2. Equipped with JUNSUN specially designed and unique “Horizontal - Vertical
Combined Vacuum Tank”, together with advanced degasification and dehydration
technology, which can remove gas and water very quickly and effectively.

3. High precision three stage oil filtration system, including primary
filter, secondary filter, fine filter with gradually increasing precision,
the dimensions of filter element are bigger than most of other manufacturers,
which can effectively remove mechanical impurities from oil.

4. Equipped with automatic temperature control system, automatic oil level
control system, automatic defoaming control system, automatic pressure
protection system, which guarantees safe and reliable operation in the long
term.

5. Equipped with comprehensive protection mechanism, such as power
protection, pressure protection, motor overload protection. If any protection
mechanism is triggered, the machine will stop working automatically.

6. Equipped with high efficiency electric heating system, heating the oil
uniformly, avoid the deterioration of oil during heating process.

7. This machine can be operated both online and offline. In addition, it can
be used as an independent vacuum pump system for the evacuation operation of
the transformer (if you need this function, please inform us before
manufacturing).

Minimum Order: 1 sets
