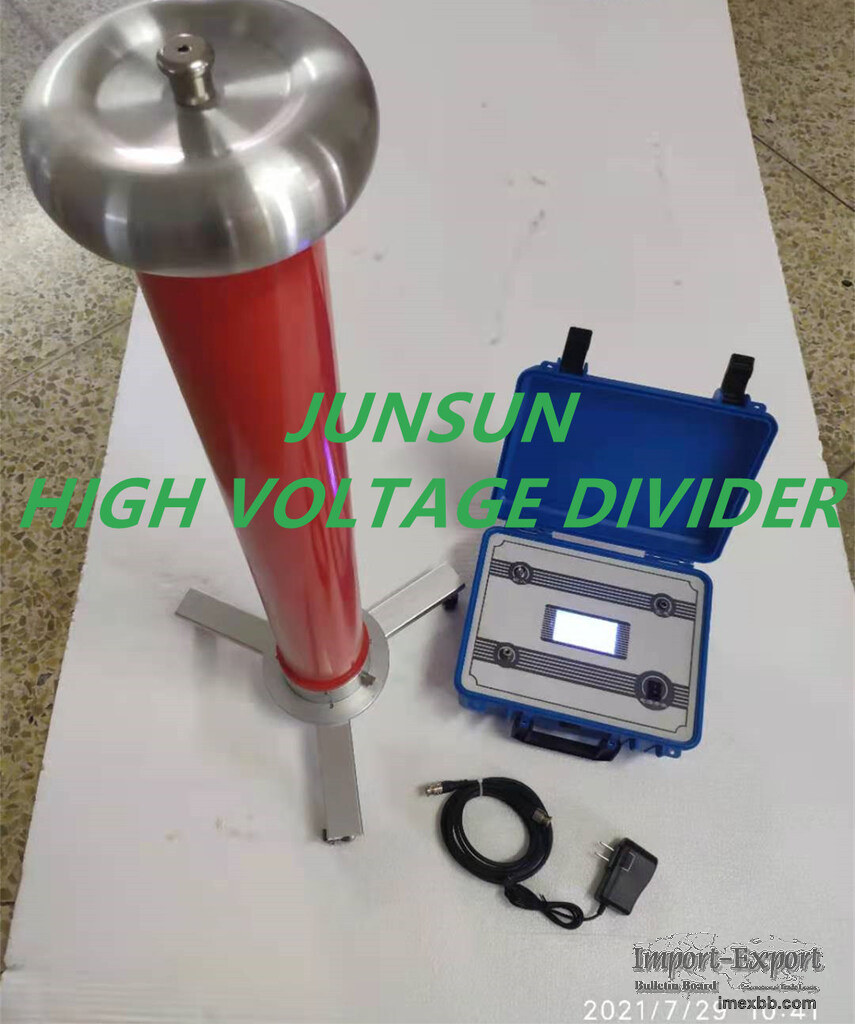

JUNSUN 100KV AC&DC High Voltage Divider

1. High precision
Uses high precision HV thin-film capacitor and HV glass glaze resistor, input
impedance is high, lower the measured current, small power consumption,
improves the accuracy and stability of the device.

For signal processing, adopts high performance OP to amplify the signal, uses
the newest dual integrating A/D sampling technique, four and half LCD
display, the maximum resolution up to 0.001kV, it is the replacement products
for HV electrostatic voltmeter.

2. Good anti-jamming performance.
Adopts special shield technique. equipotential ball uses aluminum,
effectively improves the electric field distribution around the equipotential
ball, prevents the point discharge, improves the anti-jamming ability of the
test results. LV display meter is full metal enclosed instruction to shield,
Coaxial cable connect the HV divider and LV display meter, reduce the effects
to indicating value by high voltage, then realize high stability, high
linearity.

3. Safe and reliable.
This device is composed by HV divider and LV display meter, the HV divider
uses America Dupont packing material, special technique to embed, with
smaller structure, lighter weight, lower the internal partial discharge to
the least, more reliable, do not leak oil. Coaxial cable connect the HV
divider and LV display meter when working, the HV and LV parts are far away
from each other, safe and reliable.

4. Easy to operate.
Uses toggle switch to shift HV/LV, AC/DC, convenient and swift. Four and half
LCD directly display the test results, easy and clear. Bring great
convenience for field tests.

5. Convenient to carry.
Portable structure, the whole machine use aluminum alloy package as case, can
easily to disassemble. Small in volume, light in weight, convenient to carry
and use.

Minimum Order: 1 sets
