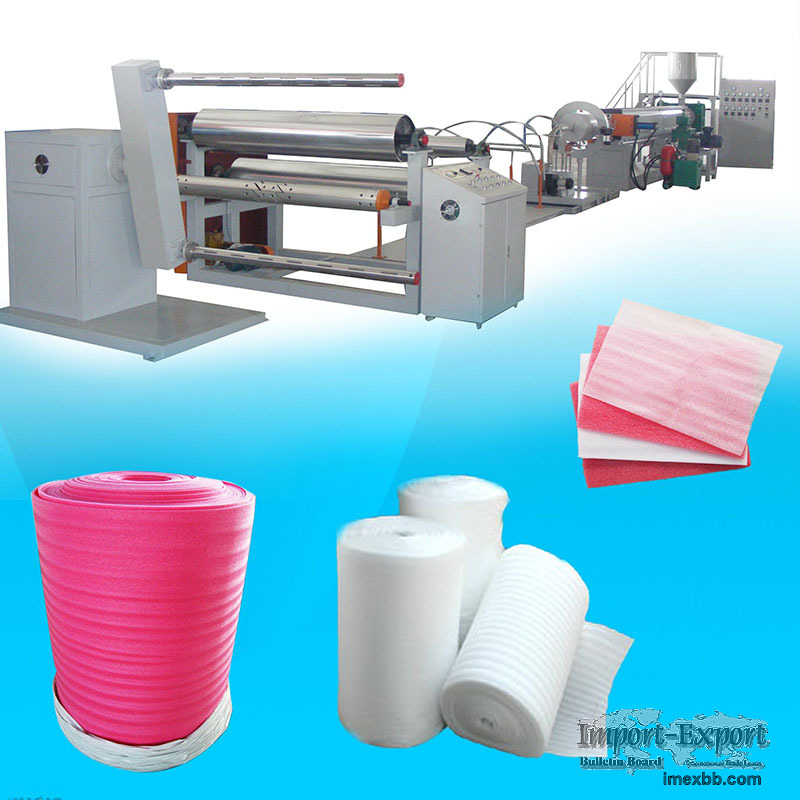

JS-200 EPE Foam Sheet Extrusion Machine

Application
This PE Foam Extruder Extrusion machine is mainly used to produce EPE sheet.
Using LDPE granule, by process of heating, melting, extruding, curing,
foaming and forming to stick, tube, U type, V type epe foam sheet foaming
extruder and fruit net. its main features are noise and heat insulation,
cushion protection, friction avoid, water, decay and moisture resistance,
good elasticity, etc.
It can make 0.5-25mm sheet and also can produce all kinds of packing and
filling materials by coating or laminating.
These products are widely used to pack electron, electric equipment, arts,
crafts, ceramic, lamp, computer products and furniture.
Features
PE foam sheet extruder producing fine closed cell Polyethylene foam sheet,
by our unique designed Screw and Barrel system, using Butane foaming agent,
Talc powder or Talc master batch and Anti-shrinking agent (GMS for short-
Surface Active Agent) by accumulated experience and advanced technology.
1. PE foam and related products are made from PE resin and it is expanded
and formed into shapes by being heated and extruded. And it is easy to be
decompounded and environment friendly.
2. Its key function is cushion protecting and warmth reserving.
3. Nowadays it is the most popularly used for modern batch production
products, especially export packaging industry, including electronic
industry (such as PC computer, laptop, electronic chips and parts, inverter,
TV, air conditioner, refrigerator), furniture, glassware, garments, metal
parts, etc.
4. Whoever aims at modern packaging and export, he has to use PE foam for
the following reasons: Packaging with air bubble film, EPS and plastic film
is forbidden in many countries. Paper packaging is so expensive.
5. PE foam products have quite a few varieties: Sheets for direct wrapping
and to make bags; PE sheet may be coated with plastic film, craft paper and
aluminum foil. It may be laminated (by electricity or LPG flame) into thick
blocks. Then cut them to make different containers or frames. PE fruit net
is direct for fruit and small matter's wrapping.
If you add special molds, you may make different profiles for door hinges
and furniture packing.
EPE Foam sheet extrusion extruder machine Advantage
ONE TIME MOLDING EPE PLATE PRODUCTION LINE
The whole equipment of EPE foam machine line provides a series of equipment
including pearl cotton foam, laminating and compounding, and EPE recycling,
which will recycle the scrap produced in production for production.
* V.F driving for speed regulation. Tandem screw with independent heating
zones to insure easy operation, easy trouble shooting, precise heating and
curing.
* OMRON temperature control system. Stable and reliable.
* Circulation water cooling. (Water tower, user to add)
* The head employed automatic screen exchange system (with a hydraulic
station) to save time and reduce wastage. About 30% may be saved.
* Mold pressure control employed digital display and a septum pressure gage.
The two systems insure stable top sheet quality.
* Winder may overturn automatically. With meter counter for length pre-
setting. Winding width is adjustable.
* High foaming times. Imported temperature control system
