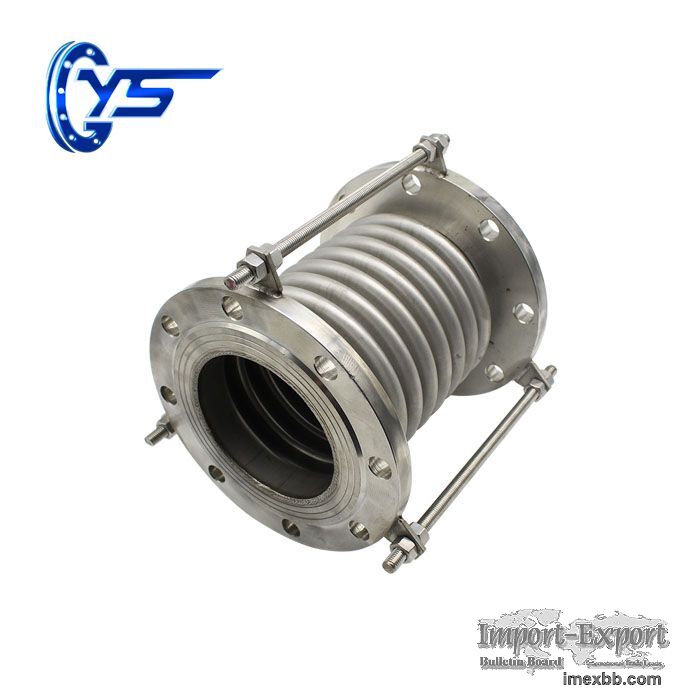

JDZ type axial internal pressure corrugated compensator

JDZ type axial internal pressure corrugated compensator Strainer Valve
Manufacturers
Medium: water, oil, steam
Caliber: DN32-2800
Pressure: 1.0-2.5mpa
Flange material: carbon steel stainless steel
Connection method: flange
HBYS Valve Details
JDZ type axial internal pressure corrugated compensator Material of main parts
Part Name material
Flange Carbon steel, stainless steel
Bellows stainless steel
Application: It is mainly used for the connection of metal pipes that transport
liquid, gas and other materials.
JDZ type axial internal pressure corrugated compensator dimensions and
connection
model Nominal diameter
(mm) Wave number L Maximum outer diameter size Pressure rating
MPa
1 1.6 2.5
Amount of axial compensation mm f9ⅡN /
ram
JDZ type axial internal pressure corrugated compensator 32 8 110
110 20/26 18/63 15/98
40 8 130 130 20/44 18/89 15/106
50 8 150 150 20/70 18/70 15/138
65 8 170 170 26/44 22/55 19/68
80 8 200 200 34/33 28/41 24/54
100 8 220 220 40/75 35/93 29/117
125 8 240 290 66/36 58/45 50/56
150 8 250 290 64/51 54/59 46/65
200 8 280 340 59/52 53/58 48/78
250 6 280 300 59/42 52/45 47/55
8 340 360 87/35 79/39 71/47
300 6 330 340 59/59 5265 47/71
8 380 400 87/37 79/41 71/45
350 6 360 340 59/67 52/74 47/81
8 420 420 87/44 79/48 71/47
400 6 360 340 59/62 52/68 47/75
8 420 420 87/43 79/47 71/52
450 6 360 340 87/37 79/41 71/45
8 460 450 131/23 118/25 106/28
500 6 450 340 87/68 79/75 71/82
8 520 450 131/39 118/43 106/48
600 6 480 380 87/85 79/94 71/103
8 560 500 131/49 118/53 106/60

Our Flange Ball Valve’s materials mainly include WCB cast iron stainless
steel, etc. GOST, JIS, DIN, BS, ANSI gate valve, ball valve, globe valve,
butterfly valve are all our main product.
Click here to learn more about valves.
https://www.hbysindustry.com/

Minimum Order: 1 pieces
