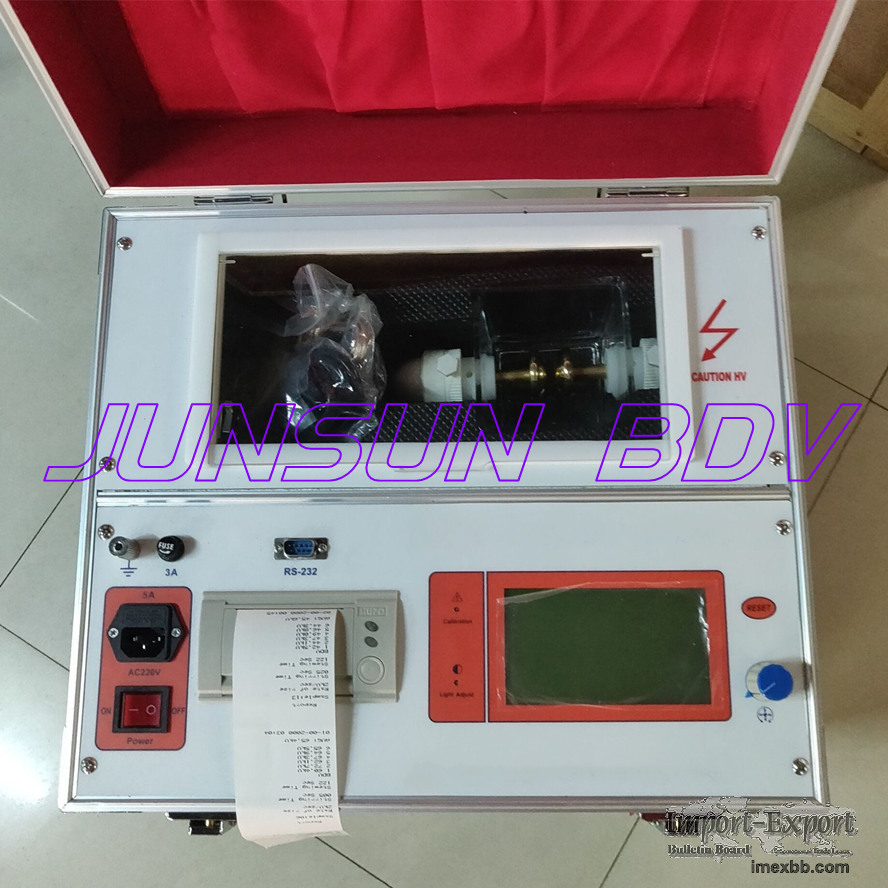

JCDY-021 Insulating TX Oil Dielectric Strength BDV Breakdown Voltage Tester

JCDY-021 SERIES TRANSFORMER OIL DIELECTRIC STRENGTH TESTER is specially
designed for testing the breakdown voltage of transformer oil and other kinds
of insulating oils.

Breakdown voltage testing of insulating oils can help to assess the condition
of these oils within electrical equipment, such as transformers, capacitors,
switches, etc. Based on the test results, the oil can be identified as aged
due to an increase in water content, sludge, or if the oil has oxidized.

FUNCTIONS & FEATURES:
1. High accuracy, long service life.
2. The test process is fully in compliance with the requirements of IEC
60156.
3. User-defined test.
4. Proof test.
5. The test process and result is displayed in real time on the LCD screen.
6. All parameters of the test process can be set.
7. The built-in EEPROM memory can save up to 100 groups of test data and
results.
8. The built-in micro-printer can print the test results at any time.
9. All the human-machine interaction operations can be completed by rotating
the mouse.
10. RS232 interface, upload test data to computer and make Word format test
report.
11. Calibration interface available.
12. The tester is easy to operate, powerful, stable and reliable, and it has
an excellent anti-interference ability.

Minimum Order: 1 sets
