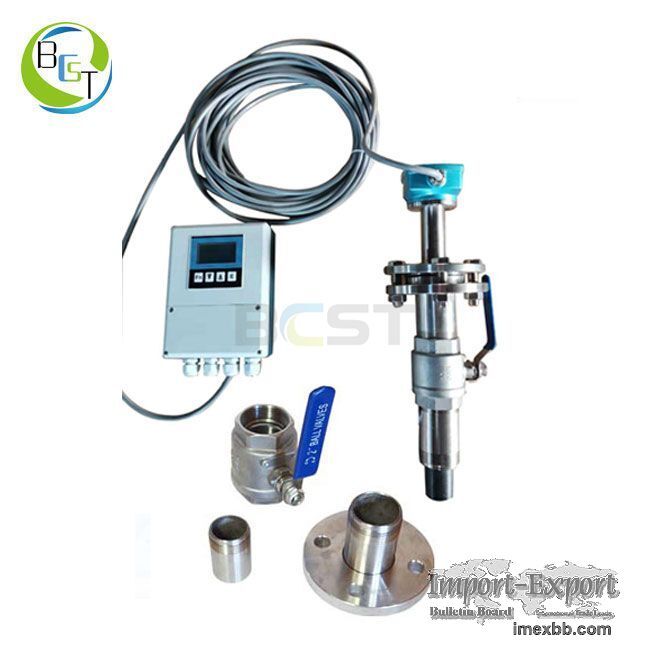

JC091 Insertion Remote Electromagnetic Flowmeter

JC091 Insertion Remote Electromagnetic Flowmeter
BCST Battery Electromagnetic Flowmeter is a new fluid flowmeter developed based
on pipe-type electromagnetic flowmeter. Besides preserving the merits of pipe-
type electromagnetic flowmeter and considering such defects of pipe-type
electromagnetic flowmeter as difficult installation on large pipes and high
cost.
Compared to ordinary electromagnetic flowmeter, sensor of BCST insertion
electromagnetic flowmeter generates external emission magnetic field on outer
side. The measuring electrodes are at the ends or on both sides of the sensor.
Principle of electromagnetic flowmeter is shown in the figure below. It is
noteworthy that in external emission magnetic field, the induction signal of
electromagnetic flow sensor will reduce the linearity of measurement in case of
being affected by fluid and thickness of the magnetic field's boundary layer.
In terms of JC091 insertion electromagnetic flowmeter, conducting liquid in
pipeline is the conductor moving in magnetic field and distance between two
electrodes is the length (L) of conductor.
Accuracy ±0.5%~±1.5% (under reference conditions)
Caliber (mm) DN100~DN3000 DN100~DN3000
Flange Conforming to GB9119, stainless steel
Pressure rating 1.6MPa
Material of converter housing Die-cast aluminum alloy
Material of sensor housing Stainless steel
Material of sensor structure Stainless steel/PVDF
Weight 6 kg
Electrical conductivity ≥5μs/cm (negotiate with us for ordering in case of
less than 5μs/cm)
Electrode  316L, hastelloy, titanium, tantalum and platinum
Protection grade IP65 IP65/IP67(IP68 is optional to sensor)
Medium temperature -25℃~80℃ -25℃~120℃
Ambient temperature -25℃~60℃
Effect of ambient temperature <±0.1%/10℃ or <±0.25%/10℃
Repetitiveness ≤±0.01% or ≤±0.25%
Analog output error ≤±0.02mA
Flow rate within measuring range ≤10m/s
Available to be buried — ≤5m (only IP68)
Electrical connection M20*1.5 seal, G1/2 and NPT1/2
Sensor cable <30M (negotiate with us for ordering in case of over
length)
How to order JC091 Insertion Remote Electromagnetic Flowmeter
Medium
Pipe size
Working pressure
Working temperature
Power supply
Other requirement
