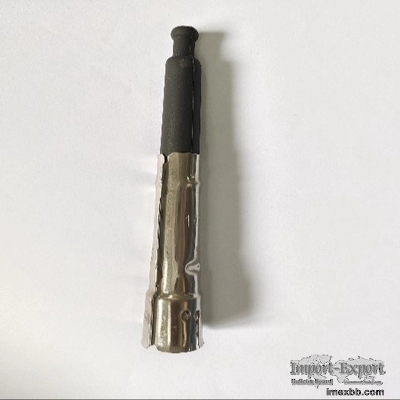

JANMOR Spark Plug Terminal Connector High Voltage Ignition System

High Voltage Ignition System Spark Plug Wire Connector for Auto Engine



Description:

The spark plug connector has great heat resistance, cold tolerance, and
dielectric properties
Silicone rubber is colorless and odorless.
The shied of the product owns a smooth surface. Logo can be added according to
the customer.
Can prevent electromagnetic interference
Usage temperature is -20~155℃
No transformation, heat resistance, acid and alkali resistance, no dilatation
Service life of the connector is not less than 50,000 km or 3 years
Can be designed and developed according to customer’s requirements


Specifications:



Raw material properties

Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1. , 17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking (155±2.5℃X168h

Product characteristics

Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

113.5+3-6 mm

Resistance

5KΩ±20%

Assem , bly dimension

Cable entry diameter

6±0.5mm

Assembly dimension: connecting cable

JANMOR Spark Plug Terminal Connector High Voltage Ignition System 0

Plug entry diameter

11±0.5mm

Assembly dimension: connecting spark plug

JANMOR Spark Plug Terminal Connector High Voltage Ignition System 1




Applications:

This spark plug connector is used in the ignition system of auto engine
JANMOR Spark Plug Terminal Connector High Voltage Ignition System 2
