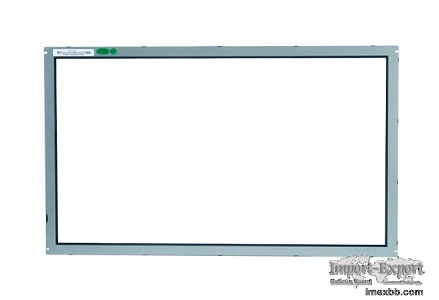

IX3000 SeriesInfrared Touch Screen

Mechanical Specifications
Touch points: 5 points
Available size: 10.4~23.6 inches
Glass: 3mm tempered glass
Transmittance: >88%
Shell material: Front shell: polycarbonate (PC), back shell: galvanized sheet
(SGCC)
Electrical Specifications
Technical principle: Infrared block detection
Infrared Touch Screen Touch accuracy: center <1mm, edge <2mm
Power supply specifications: USB power supply (DC5V± 5%@500mA)
Power consumption: <1.5W
MTBF: 61000Hours
Interface Types
USB(default), COM
Environmental Specifications
Temperature: Run :-20~70°C Storage :-40~85°C
Humidity: Operation :10%-90% RH40°C without condensation
Storage :10%-90% RH,40°C without condensation
Electrostatic protection: EN61000-4-2 2008:L4,Class B
Contact discharge 8kV, air discharge 15kV
Light resistance: greater than 150k Lux(sunlight)
M C: CE,FCC Class B Compatible
Dust and water resistance: IP65 on front
Software Specifications
Firmware upgrade: Support
Calibration: Four-point calibration
Device type: Touch mode, mouse mode
Operating system: Windows (xp, 7, 8.1, 10), the Linux (2.6 or higher), Android
(2.6 or higher), Vxwork (6.5 or higher)
