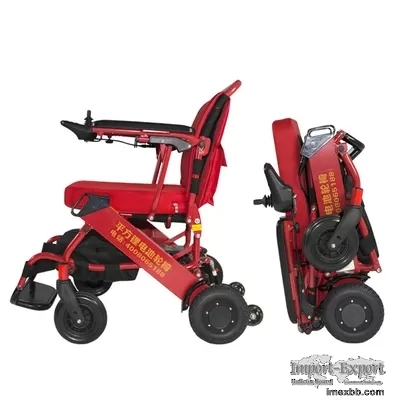

ISO13485 220lb Classic Foldable Electric Wheelchair

Product Description
Medical Equipment Lightweight Handicapped Classic Foldable Electric Wheelchair

Model DYN30A ( D07 )



Description

At present, the elderly choose to travel more and more, take a rip around the
world, It is the dream of many old people when they are young. Now They are
retired, Make this dream come true while you can still walk. After all, the elderly
are not young people, short walks are ok, long distance is not possible, travel.



If can have a portable electric wheelchair, that would be much better. Got off the
plane or out of the high-speed rail, directly sit in the electric wheelchair
driving their own electric wheelchair, is it a very interesting thing! However, due
to the current aviation regulations, many with battery equipment can't carry on a
plane, also including some electric wheelchair, only to satisfy the standard of
civil aviation battery capacity electric wheelchair is allowed to carry on the
plane, so choose a folding electric wheelchair can be on a plane, for many elderly
people is very necessary.



​The chair is controlled with an easy-to-uick thse joystat can be placed on either
the left or right hand side depending on the user's preference. It is designed with
a 8-inch rear-wheel drive system to overcome tough terrains such as hills and ramps
and provides a smooth ride throughout.

The Ultra-Light electric wheelchair can reach maximum speeds of 6 km/h and travel
up to maximum 30 km on a fully charged battery. The wheelchair is perfect for
domestic and outdoor use such as supermarkets, shopping centres and parks.





The product specifications you cared most

Model Number DYN30A (D07) Type Elecctric Wheelchair
Net Weight 18 KG / 39.68 lbs Battery Weight 1.5 KG / 3.31 lbs
Distance 15KM/ 9.3mi Or 30KM/18.64mi Maximun Speed 6KM/H
Load Capacity 100kg/220lb Charge Time 5h
Battery Capacity 24V 8AH Or 24V 16AH Motor 150W *2 brushless motor
Unfolded(LxWxH) size 87.5x57x87.5cm Seat Size 40*44*6cm
Folded Size 57*29*69cm Packing Dimension 65*36*77cm
Front Wheel 7”*2 PU Tyre
or 8”*2 Pneumatic tyres Rear Wheel 8” Rubber wheel filled with PU
Joystick Left, Right or Backrest***** Cushion Removable
Charger Input 100-240 VAC 50/60Hz Grade Ability 10°
Anti-tip device Yes Seat Belt Yes
Tools Yes Flip-up Armrest Yes
Battery type Lithium Ion Battery Color Yellow, Black, Red, Silver****
*Error and uncertainty in measurement



Packaging

Individual Package Weight 25kg/55lb # of PCS /Master Carton 1pc
Individual Package Dimension (L*W*H) 65*36*77cm # of 20'' container
162pcs
Packing Carton All sides of the interior are protected by pearl cotton # of 40''
container 324pcs
*Error and uncertainty in measurement



Advantage

Foldable and Ultra Light

Effortlessly fold in just a few seconds to fit your trunk, closet or anywhere just
need small space. The whole Frame N.W just 18 kg.

Flip-up Armrest

Power wheelchair with flip up armrest. It is very convenient for users to get up
and down the wheelchair, and the armrest can be lifted when approaching the table.

Comfortable

Use breathable cushion comfortable and can be removable for cleaning. And The
tightness of the seat back cushion can be adjusted according to the user's demand.
Users will not feel tired after sitting for a long time.

Electrical appliances are highly compatible. The noise of the motor is low, So in
the library and other quiet places can be safely used, will not affect others.

Security

Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
