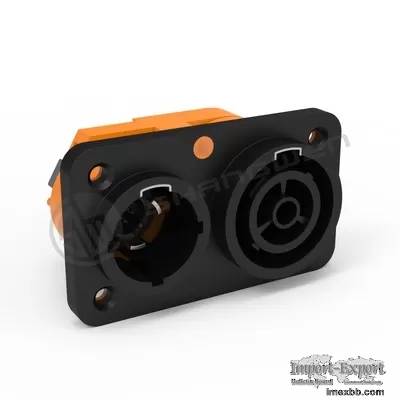

Ip65 Electrical Waterproof Power Connector Female Chassis Connector

PRODUCT DESCRIPTION
p65 Outdoor Lockable Triple Core 2 In 1 Power Female Chassis Connector For
Electrical Connection



Products Description

Power connector series-female powercon(output port)





This series is widely used in outdoor rental LED display power connection.

The new upgraded model not only supports male and female inserts, but also
supports male plug and male plug inserts

The plastic part is made of PA6 material, with stable electrical
performance, good pressure resistance, high temperature

resistance, explosion resistance and corrosion resistance.

The copper needle is made of beryllium copper material imported from the
United States and plated with silver, which has strong contact stability and
can strengthen the control of temperature rise.

Using rotary locking design, easy to operate, stable and reliable !






Model : SW3MF-Z( outdoor use/output port )



☑The product is a new upgraded generation of power connectors, widely used
in outdoor conditions for electrical connection
☑Lockable triple core equipment (AC) connectors with contacts for straight,
neutral and pre-adapted safety grounding
☑High current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off
☑Connection mode:

1. Screw clamping and welding
2. Lock the cable with screws
☑Protection level: used in outdoor scenes, protection level up to IP65
☑Connect reliably
☑Use different color design to distinguish signal input and output, yellow
input, black output
☑Using left and right positioning connection design, can effectively
prevent short circuit caused by misplug
☑The inner core is designed to prevent the copper needle from withdrawing
from the inner core due to excessive pulling force



1. Electrical parameters

Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
＞1000MΩ
2. Mechanical parameters
Service life
＞1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination

3. Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP65
Temperature range
-30°C to +80°C
4. Size reference (unit /mm)
Ip65 Electrical Waterproof Power Connector Female Chassis Connector 0

Application area


Shangwen electronics has excellent engineering creation team, market
operation team, modem manufacturing workshop, strict qulity supervision
system and fast storage and logistics faciities. Over the years, the
products have been widely used in LED display, lighting equipment,
engineeing machinery equipment and etc.We will
continue to develop into aworld-renowned brand in the connector industry.
