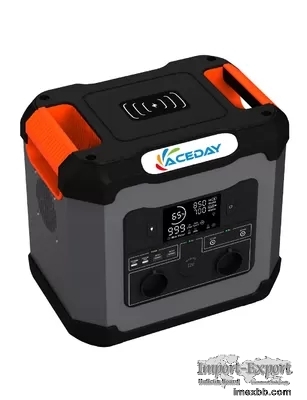

IP63 Dustproof LiFePO4 Outdoor Portable Power Station 1200W ADS1200

1. Specification of 1200W Bidirection inverter outdoor portable power
station

2 input-(conversion efficiency:＞90%) Rated Power:1200W, Peak 2400W
1. AC 600W LifePO4 Battery 32140
2. PV Solar XT60:12-32V 15A 400W MAX Capacity:1008Wh /315000mAh
Service and ambient temperature: Pure wave
Input Temp.:0~40℃(32~104℉) Output Temp.:-10~60℃(14~140℉)

Storage Temp.:-20~45℃(-4~113℉)

10 output-(conversion efficiency:85-93%) Cycle life >2000
1. USB 2x USB QC3.0 22.5 5V/4.5A, 9V/2A, 12V/1.5A(22.5W) V0
ABS+Aluminium housing
2. AC 2x AC ,100-120V, 220-240V
Product Size:338*247*245mm

Package Size:425*330*370mm

N.W.:13.6 KG

G.W.:14.6KG

3. DC 2x DC5521 12-13V/10A, Peak120w
4. Type-C 1x PD100W 5V/2.4A, 9V/3A,12V/3A,15V/3A,20V/5A ,Peak100W1x
PD27W 5V3A9V/3A 12V/2.25A,Peak27W IP63 cover for AC, XT60 connector
5. Car charger 1x 12-13V/10A,Peak120w
6. Wireless charge 5W. 7.5W. 10W. 15W Over 100pcs, the color of
handle, housing, window, plug cover could be customized.
Accessory: 1 x adapter+cable(1.2m)+1 x manual+1 x PV conver
line(option)

2. Advantages of 1500W Bidirection inverter outdoor portable power station

1. IP63 dust-proof, sand-proof, anti-splash design ;
2. Use High performance, high safety, high power blade lithium battery from
CATL company.
3. Automatic cooling system, two fans inside, once the temperature reach
40℃ and 70℃,the fan will cool dowm in different speed.
4. Support DC charging while discharging function;
5. Support 15W wireless charging function;
6. Multiple protection: under voltage, over current, over temperature, short
circuit, over charge, over discharge and so on;
7. Support wireless charging, QC3.0, Type-c, fast charging function;
8. Specially equipped with car battery charging interface 13.8V/5A;
9. Automatic shutdown in 60s non output.

10. Over 100pcs, the color of handle, housing, window, plug cover could be
customized.

Application Environment for 1200W Bidirection inverter outdoor portable
power station
1. As an energy storage power source for outdoor office use, it can be
connected to consumer digital devices such as mobile phones, tablets, and
notebooks.
2. Outdoor electricity for outdoor photography and off-road enthusiasts, and
outdoor electricity for video recording equipment of TV stations.
3. Electricity for outdoor lighting.
4. Emergency power supply for mines, oil fields, geological prospecting, and
geological disaster rescue.
5. Emergency power for field maintenance of the telecommunications
department.
6. Emergency power supply for small miniature first aid equipment for
medical equipment.
