IP20 LED Drivers Power Supply 24V 400W 16.5A 1600V High Voltage Test

PRODUCT DESCRIPTION

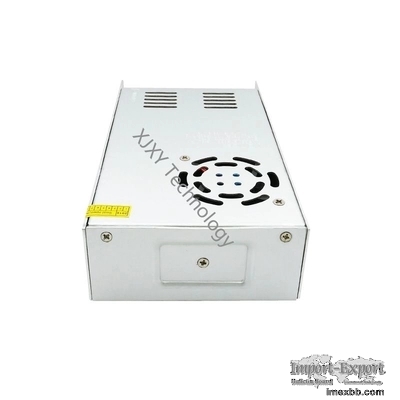

LED Drivers Power Supply 1600V High Voltage Test 24V 400W 16.5A Showcase
Display

Quick Detail:

High power Indoor type aluminum shell
AC/DC switching 24V 400W 16.5A single-switch LED driver
AC input voltage: 90-130V or 170-250V
1600V High voltage test, full loading test and old aging test
Constant voltage driver apply for LED light strip, LED module and so on
IP20 grade
CE, ETL approvals
3 Years Warranty
Unit Size: 21.4*11.4*5.0CM & Unit Weight: 810g
Description:
Our products are widely used in LED industrial project, communications power,
aerospace, industrial control systems, posts communications, medical equipment
and other industrial and commercial fields. All these products adopt PWM high-
frequency pulse width modulation technology, mature standardized production,
strict 100% load-carrying aging, high and low voltage impact experiments and
complete test records for development & production of LED driver through
strictly quality control system and highly responsible attitude, thus have a
good quality feedback during application.
High Power LED Drivers have 12V and 24V types with 400W,
500W,600W,700W,800W,1000W and more. they are mainly used for LED light strip,
LED module, light piece, light box/lamp house, signboard light, line light,
wall light, underground light, LED guardrail tube, perforated light etc.

Specifications:

Series Name LED Driver




IP20 LED Drivers Power Supply 24V 400W 16.5A 1600V High Voltage Test 0



1 Basic info 24V 16.5A 400W
2 Model S-400W-24V( indoor)
3 Material Aluminum
4 Efficiency 75%
5 Rated input 220VAC 50/60Hz
6 Voltage Range 90-130V or 170-250V
7 Output Voltage DC24V±5%
8 Output Current 16.5A
9 Output Power 400W
10 Grade IP20
12 Protect
Shortage/Overload
Over voltage/Over current

13 Dimension 21.4*11.4*5.0CM
14 Weight 810g

Notices:
1. Input voltage should be within the specified voltage range (for examples:
input voltage 220VAC).
2. Prohibited to be used in the high temperature environment, power port is the
thermal vents, wind 50CM range, please do not place other objects, make sure
that the power should have good thermal dissipation space environment.
3. Prohibited to install power supply in the presence of flammable materials
(such as wood products, flammable plastic, etc), to stay away from petrol
stations or where prohibited Fireworks.
4. Accurate calculation of load power, peak use, suggested user to use power
supply based on power 80% load, do not overload.
5. Power supply have built-in short circuit protection function, when output
short circuit, the power will automatically enter the status. Power off after 1
minute and then power on.
6. For safety, properly grounded, the output power cable must be ≥2.5mm2
7. Strictly in accordance with the position indicated by the output terminals
of the power supply. It must be firm, check the output line and prohibited to
be reversed (input "220VAC" main line, output "+" loaded for positive cathode,
output "-" load for negative cathode).
8. Before power, check that the line voltage is compatible with the operating
voltage with multimeter (voltage: 220VAC) recognized before it can be closed.
9. Power firm installed vertically (vertically in a place easy to wire the
power supply, cover to cover, to be water proof)

High Power 12V 24V LED drivers related models list:

Series Input Voltage Output Value Weight/g Size/mm
12V/24V 90-130V/170-250V 400W 810 214*114*50
12V/24V 90-130V/170-250V 500W 935 220*114*58
12V/24V 170V-250V 600W 1180 200*130*65
12V/24V 90-130V/170-250V 700W 1185 200*130*65
12V/24V 170V-250V 800W 1185 200*130*65
12V/24V 170V-250V 1000W 1202 242*125*65

Applications:
Widely used in LED Lighting, LED display, LED strips, LED advertisement screen,
LED sign, LED night light, LED lamp house, LED decoration, LED wall light, LED
street light , LED wall light, LED backlight, LED tube, offices , hospital ,
schools , factories , plants, shopping malls, supermarkets, kitchen, fair
cabinet and so on.
