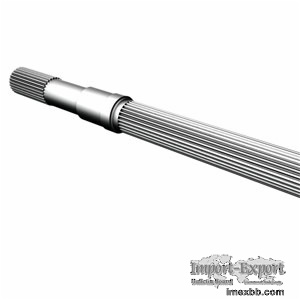

Involute Spline Shaft

The involute spline shaft is the form of mandrel splines used by all the
twin screw extruder parts over the world. The standards of the spline are
Chinese GB standard, German DIN5480 (or DIN5482) and Japanese standard. The
design of this spline can make the groove depth of the screw larger, and
ensure the mandrel and extending the service life of the screw element at
the same time. The short-tooth involute spline shaft is commonly used by
famous brand factories at home and abroad. It has many teeth, high strength,
uniform force, and long mandrel life.
Spline Shaft Suppliers, Spline Shaft Manufacturers
As a specialized spline shaft manufacturer, LESUN has the sophisticated
machinery, capacity and fully trained employees, to produce different kinds
of splined shafts.


Technical Details of Involute Spline Shaft for Sale
Brand：LESUN
Material：40CrNimo
Ma , x Lentgh：6 meters
Application: Extruder
Screw Shaft Classify
1. Hexagonal shaft
2. Involute spline shaft
3. Single key shaft
Processing Characteristics of Involute Spline Shaft
1. As a spline shaft stock manufacturer, all component materials are
purcharsed from professional material supplier, to ensure quality of raw
materials, element and metallographic analysis are coducted.
2. All extruder components are finished by CNC grinding.
3. Screw and barrel wear is important for all plastic spline shaft and
splined shaft application, Lesun screw and barrel wear tolerances are
critical.
4. Professional technical team can provide surveying and mapping business.

Minimum Order: 2 pieces
