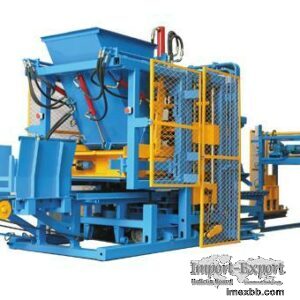

Introduction for RTS6C block brick making machine with wholesale price

1) STATIONARY BLOCK MACHINE REIT- RT6C
RT6
CAPACITY/PER PALLET : - 6 HOLLOW BLOCKS 400×200×200MM
PALLET SIZE : - 900×700×25MM PVC
WORK AREA : - 820×650MM
PRODUCT HEIGHT : - 50-220MM
OPERATION CYCLE : - 15~30S
VIBRATION MOTOR : - 2×7.5KW
OSCILLATION FORCE : - 100 kN
MACHINE WEIGHT : - ABOUT 7 TON
The manual brick making machine can be universally used for the manufacturing
of pavers with and without face mix, kerb stones, hollow blocks and similar
elements.
BODY
The block machine for sale in usa is built of strong section steel with 2
guiding columns with which the mould moves up and down. The seat of mould is
equipped with synchronized connecting rod so that both sides of two end of
mould is up and down synchronously. The mould and mould head linked with their
seat through the special rubber bush.
FILLER SYSTEM
The filler system is integrated one which can be moved out or into body when
need. The filler box and hopper is fixed on the support frame. Their height is
adjustable according to the product height. The capacity of base concrete
hopper is approx 0.5 m3 and outlet is driven by hydraulic cylinder.
The filler box is driven by hydraulic cylinder and the guiding rollers are
inside of U rail. In the filler box there are rotating bars with sticks driven
by a german made hydraulic motor , which with concrete compulsory movements can
make the filling process fast and wet concrete in the mould well-distributed.
As the final result the products are high quality.
