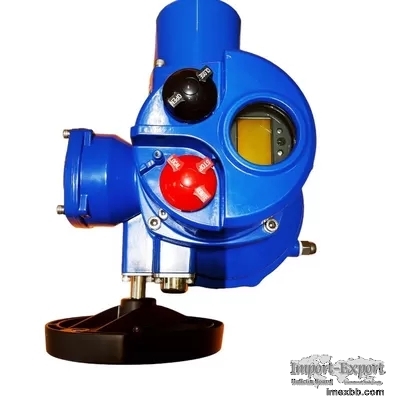

Intelligent Electric Valve Actuator IP67 Part Turn Electric Actuator

PRODUCT DESCRIPTION
Intelligent Explosion-proof 150N.m IP67 part-turn electric actuator with
Thermal protection and torque protection



Quick Detail:



1. Power supply:

A) 380V AC +10%/50Hz plus or minus 5%,or custom

B) 220V AC +10%/50Hz plus or minus 5%,or custom



2. Input signals:

A) Analog quantity 4mA~20mA DC,input impedance 250Ω

B) On-off quantity active 24V DC

C) The PROFIBUS or MODBUS(optional)



3. Fundamental error bound:≤1%



4. Repeatability error:≤±1%



5. Dead band setting:0.1%~9.9% adjustable



6. Protection grade :Standard IP67(1m underwater 30 minutes)

Optional IP68



7. Low temperature:-20℃~+60℃ special -40℃~+70℃



8. Ambient humidity:≤95%(+25℃)



9. Working system:S2-10min short-time working system or custom



10. Explosion-proof marks:ExdI,Exdib II BT4 and Exdib II CT4



Parameters:

Intelligent Electric Valve Actuator IP67 Part Turn Electric Actuator 0



Description:

Die-casting aluminum housing greatly reduce product weight and optimize the
product appearance,precise torque measurement,precise valve position travel
measurement,motor monitoring and protection.

Intelligent Electric Valve Actuator IP67 Part Turn Electric Actuator
1Intelligent Electric Valve Actuator IP67 Part Turn Electric Actuator
2Intelligent Electric Valve Actuator IP67 Part Turn Electric Actuator
3Intelligent Electric Valve Actuator IP67 Part Turn Electric Actuator 4


Notices:



1. Only qualified personnel can have the authorization to operate these
equipment



2. While above mentioned personnel is using the equipment, the relevant
instruction manual and/or other product files should be always prepared in a
way to make the requirements of this manual be followed



3. Before the power is on, please double check the input voltage, frequency
and connections are right. Any motor damage caused by wrong wire sequence or
wrong voltage, the manufacturer will not be responsible for the maintenance
and replacement.



4. The connection bolts for connecting valves should not be less than Class
8.8.



5. The Electric cabinet cap and motor etc. sealing area should not be opened
during cloudy or rainy days.



6. Special motor was used for the electric actuator, the lasting time is
short. Continuous working time should not be over the limit specified on the
nameplate.



7. While the equipment is not usually used, it should be checked, maintained
and activated on a regular basis. The recommend frequency is 1 time/month,
and the duration should be less than 10 mins.



8. Electric related caps should not be removed at explosive environment
while there is still electricity. Whenever someone want to open the electric
cabinet cap, the power should be cut off.



9. The electric actuator should be stored inside a room with clean and dry
condition prior to installation. If installed outside the room, it should be
kept at a certain height away from the ground, and anti-humidity, anti-rain
procedures should be performed.



10. While initial electric operation after installation or re-installation
is required, the valve should be in the middle position to check the
open/close direction. Tests should be performed one by one according to the
commissioning procedure and all parts should be checked at normal status
prior to using.



Applications:

Widely applied in various industries such as power
station,petroleum,chemical industry,building,water treatment,urban
construction,etc.



FAQ

Q1.What about the lead time?

A: 5-7 days for Sample preparing ,15-20 working days for mass production.



Q2. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production.



Q3: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q4: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and
the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send new lights with new
order for small quantity. For defective batch products, we will repair them
and resend them to you or we can discuss the solution including re-call
according to real situation.



Company Profile

Chenglei has been developing and manufacturing valve electric actuators for
20 years and is one of the a market-leading global manufacturers and
providers in the industry. We have a professional technical research and
development team, professional management talents and dozens of quality
inspection personnel. The company has more than 50 CNC machining centers,
CNC lathes, various inspection equipment and other professional equipment.



Our comprehensive product portfolio and over 20 years of industry knowledge
mean customers can rely on us to deliver innovative, reliable and economic
products. Chenglei products are designed and manufactured with quality
components and clear user interfaces for quick and safe operation in the
field. Our strict product development and testing ensures long-lasting
performance and continued reliability. Our independently developed and
produced CL series valve electric actuators are widely used in various
industries such as Oil & Gas, Water & Power, and Chemical, Process &
Industrial .



Customers rely on us for innovative, high quality and dependable products
for managing the flow of liquids, gases and powders. We help customers
around the world to reduce emissions, improve efficiency, minimize their
environmental impact and assure safety.

Intelligent Electric Valve Actuator IP67 Part Turn Electric Actuator
5Intelligent Electric Valve Actuator IP67 Part Turn Electric Actuator
6Intelligent Electric Valve Actuator IP67 Part Turn Electric Actuator
7Intelligent Electric Valve Actuator IP67 Part Turn Electric Actuator
8Intelligent Electric Valve Actuator IP67 Part Turn Electric Actuator
9Intelligent Electric Valve Actuator IP67 Part Turn Electric Actuator 10

Intelligent Electric Valve Actuator IP67 Part Turn Electric Actuator
11Intelligent Electric Valve Actuator IP67 Part Turn Electric Actuator 12



Advantages

-Providing complete solutions for industrial valve automation

-Specialization and innovation

-An indispensable member of the industry

-Performance and Security

-Quality and Reliability

-Maintenance and Repair

-Installation and Commissioning

-Training
