Intelligent Bridge Construction Machine Prestressed Tension Jack

Intelligent Bridge Prestressed Tension Jack

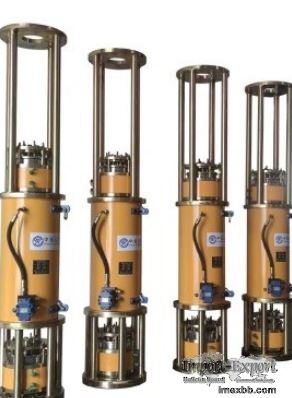

Introduction of Synchronous lifting jack

The synchronous lifting hydraulic system is computer-controlled overall lifting
and lowering. The technology adopts flexible steel strand load-bearing, lifting
steel strand hydraulic jack clusters, computer control, and hydraulic
synchronous lifting principles. Combined with modern construction technology,
it realizes large tonnage, large span, and large area. The super-large
components are lifted and lowered synchronously at high altitudes. The flexible
steel strand is used for load bearing, the lifting height is not limited, the
self-locking property of the anchor is improved, and any position can be locked
reliably for a long time.

Technical Parameter of Synchronous lifting jack

model Safe working load
Working pressure

MPA

Cylinder stroke

mm

Retraction height

mm

Jack weight

KG

Fixed anchor weight

KG

boost speed

m/h

Number of strands Strand diameter
ZT-TSD15 15 31.5 500 1846 148 3.2 0-25 1
18
ZT-TSD45 45 31.5 500 1726 600 28 0-25 3
18
ZT-TSD60 60 31.5 500 1726 630 32 0-25 4
18
ZT-TSD100 100 31.5 500 1790 930 46 70-25 7
18
ZT-TSD180 180 31.5 500 1886 1560 90 0-25 12
18
ZT-TSD280 280 31.5 500 1938 2330 130 0-25 19
18
ZT-TSD300 300 31.5 500 1940 2460 140 0-25 20
18
ZT-TSD400 400 31.5 500 2100 3396 220 0-25 27
18
ZT-TSD580 580 31.5 500 2220 4980 260 0-25 38
18
ZT-TSD680 680 31.5 500 2180 5410 320 0-25 45
18
ZT-TSD800 800 31.5 500 2200 6880 360 0-25 54
18
ZT-TSD1000 1000 31.5 500 2286 8520 560 0-25 66
18

Working Principle of Synchronous lifting jack

The Lifting Hydraulic Strand Jack working principle is to integrate the
prestressed anchor anchoring technology with the hydraulic jack technology,
anchor the steel strand through the anchor, and then use the computer to
centrally control the flow and oil pressure output of the hydraulic pump
station. The device drives the jack piston to extend and contract (displacement
sensor device)and forces the steel strand and the component to rise, descend,
and continuously translate to realize the overall synchronous lifting
(translation) and lowering movement.
