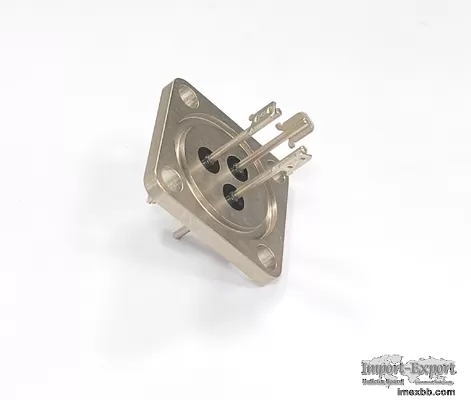

Insulation Resistance Hermetically Sealed Terminal Unit OEM For Extreme Tem

PRODUCT DESCRIPTION
1000MΩ Insulation Resistance Hermetically Sealed Unit For Extreme Temperatures
Product Description:
At our company, we specialize in offering custom sintered seal terminals according
to the exact specifications of customers. To ensure the quality and performance of
these terminals, the parameters we adhere to are listed below:

Material: 45 Steel
Hi-pot: 3000v leak current ≤ 0.5MA
IR: 1000V IR > 1000MΩ
Leak Test: 4MPa N2 pressure No leak
Burst Test: 5MPa No leak
Operating Temperature Range: -70°C - 300°C
Insulation Resistance Hermetically Sealed Terminal Unit OEM For Extreme
Temperatures 0Insulation Resistance Hermetically Sealed Terminal Unit OEM For
Extreme Temperatures 1
Features:
Hermetically Sealed Equipment: Hermetically Sealed Terminal
Material: 45 Steel
Voltage Rating: 1000V
Insulation Resistance: 1000MΩ
Temperature Rating: -70°C - 300°C
Impact Resistance: 200N

Technical Parameters:
Environmentally Friendly Electroless Nickel Plating
Our company offers an environment-friendly electroless nickel plating method, with
the coating thickness of 3-5 microns. This green nickel plating does not contain
any harmful elements such as mercury, lead, cadmium or hexavalent chromium, and it
is up to the standard of EU. Ultimately, SGS environmental test report has been
presented as a proof.

This electroless coating materials can be exclusively used for the purpose of
protecting electrical connections from oxidation and other corrosion.


Applications:
SSCore Hermetically Sealed Terminal is a reliable, high-performance, and
hermetically sealed equipment that has been designed and manufactured with strict
production standards and certification of IATF16949. It is constructed from 45
Steel and features a voltage rating of 1000V, a temperature rating of -70°C to
300°C, and a dielectric strength of 3500VAC. Furthermore, it is highly resistant
to salt spray, with the rusted area being less than 5% after 48 hours. This
terminal is ideal for various applications such as hermetically sealed assemblies,
hermetically sealed devices, and hermetically sealed equipment.

SSCore Hermetically Sealed Terminal is available in a variety of sizes at a
competitive price, starting from 10 to 40 $. The minimum order quantity is 5 pcs,
and it is packaged in vacuum package for secure transportation. The delivery time
is usually 7 to 14 workdays, and we accept payment terms such as L/C, D/A, T/T,
D/P. We also have a production capacity of 50w pieces per month.
