InGaAs SWIR Short Wave Infrared Technology

At Zillion Techs, our clients receive full access to unrestricted performance
and full supply-chain control: from the unprocessed starting material (usually
epitaxy) to fully packaged production devices such as IR imagers/cameras,
lasers, waveguides, and systems.

We provide linear and focal plane arrays and extended wavelength InGaAs image
sensors and cameras. The applications include security, surveillance,
scientific, spectral imaging, machine vision, line-scan inspection, laser beam
profiling, and process monitoring. Specialized in Indium Gallium Arsenide
(InGaAs technology) imaging technology, Zillion Techs manufactured a wide range
of high-quality shortwave infrared (SWIR) cameras covering the spectrum from
900nm-1700nm or 400nm-1700nm.

We have our Zillion Techs's top engineering team that can take your
optoelectronics fabrication needs from process design, through development
stages, and eventually to commercial production in-house. With our world-class
design and fabrication facility, Zillion Techs is ready to take your next
project from design to prototype to volume production.

SWIR SENSORS
We provide different types of InGaAs imaging sensors.

320 InGaAs QVGA Area Sensor
320x256 format, 15μm pixel pitch, InGaAs FPA

640 InGaAs VGA Area Sensor
640x512 format, 15μm pixel pitch, InGaAs FPA

1280 InGaAs High-Definition (HD) Area Sensor
1280x1024 format, 15μm pixel pitch, InGaAs FPA

SWIR Cameras

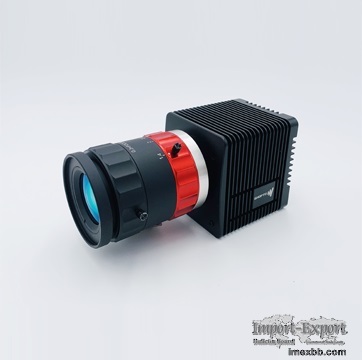

The high-quality shortwave infrared (SWIR) cameras supplied by Zillion Techs
are able to cover the spectrum from 900nm-1700nm or 400nm-1700nm. As the
Specialist in Indium Gallium Arsenide (InGaAs) image sensor technology, our
products include 1D linear arrays and 2D focal plane arrays & extended
wavelength response imaging, showing excellent performance in a variety of
applications.

640 SWIR InGaAs High Cost-Performance Camera USB2.0
A 640x512 resolution InGaAs camera comes with a USB 2.0 Vision interface and
features low weight and power.

640 SWIR InGaAs High Cost-Performance Camera USB3.0
A 640x512 resolution InGaAs camera is equipped with a USB3.0 interface,
achieving a high frame rate of 240fps.

640 SWIR InGaAs High Cost-Performance Camera GigE
A 640x512 resolution InGaAs camera with GigE interface meets requirements of
high sensitivity in the SWIR range from 900nm to1700nm.

640 SWIR InGaAs High Cost-Performance Camera Link
A 640x512 resolution InGaAs camera comes with PAL output and Camera Link vision
interface, supporting 14-bit data transfer and adjustable exposure time.

1280 SWIR InGaAs High Cost-Performance Camera GigE
A 640x512 resolution InGaAs camera with GigE interface which provides
outstanding image quality.

SWIR Lenses & Accessories

We have a wide range of options to deliver the best solution for our cameras.
It is advised to use high-performance SWIR Optimized Lens to maximize the
ultimate use of our products.

SWIR APPLICATIONS

SWIR Cameras and Accessories in Machine Vision
Industrial Machine Vision cameras are the hearts of any vision system, no
vision system is complete without it. For the last 10 years, Machine Vision
industries have been reinventing itself to cope with the ever-increasing
demands of manufacturing processes. From higher quality, higher speed,
increasing complexities to cost-effectiveness.

SWIR Cameras and Accessories in Photovoltaics
At that glass inspection stage, rejects are identified, then shunted aside and
reprocessed efficiently, greatly reducing scrap. SWIR cameras can detect the
imaging quality of laser spot in the industry，like detects the centroid energy
of the spot. whether the laser spot meets the gaussian distribution and other
purposes allowing operators to inspect both the interior and exterior walls of
the bottle, as well as monitor the temperature uniformity and cooling rate of
the material.

As one of the most professional image sensor companies, Zillion Techs provides
short wave infrared, swir inspection, swir systems, swir hyperspectral imaging,
short wave vs medium wave infrared, swir vs flir, lwir vs mwir vs swir, short
wavelength infrared imager, infrared short wave, etc. If you want to know swir
applications or more, Contact us.

Minimum Order: 1 pieces
