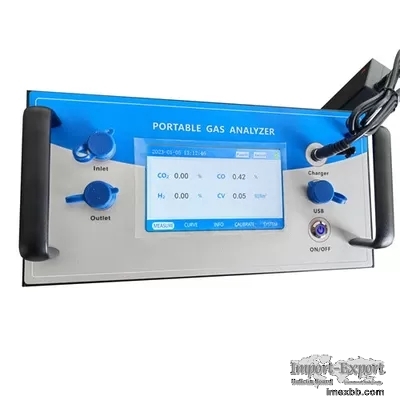

Infrared Portable Syngas Analyzer For CO2 Heating Value Biomass Gasificatio

Product Description
Portable Syngas Analyzer for CO2 Heating Value biomass gasifications steel
making process applications



Here are a few considerations and recommendations for portable syngas
analyzers for CO2 heating value measurement in biomass gasification for
steelmaking processes:

1. Gas Components Monitoring: Ensure the analyzer can accurately measure the
components of syngas, including CO, CO2, H2, CH4, and other trace gases that
might be present.

2. Accuracy and Precision: Look for analyzers with high accuracy and
precision in measurements. This is crucial for reliable data in process
optimization.

3. Response Time: A fast response time is important for real-time monitoring
and control. It helps in making quick adjustments to the process.

4. Temperature and Pressure Range: Ensure the analyzer can operate within
the range of temperatures and pressures typically encountered in the
gasification process.

5. Durability and Portability: Since it's a portable analyzer, it should be
robust enough to withstand the conditions of an industrial setting. It
should also be easy to transport and set up.

6. Calibration and Maintenance: Check if the analyzer has a straightforward
calibration process and inquire about maintenance requirements.

7. Data Logging and Communication**: Look for features like data logging,
which can be useful for trend analysis. Also, consider if it has the
capability to communicate data to a central monitoring system.

8. Safety Features: Ensure the analyzer has safety features in place,
especially when dealing with potentially hazardous gases.

9. Power Source: Consider the power requirements and if the analyzer can be
powered using readily available sources in your facility.

10. Cost and Support: Evaluate the cost of the analyzer and the availability
of technical support from the manufacturer.

For specific product recommendations, I recommend consulting with
specialized suppliers or reaching out to companies that specialize in gas
analysis equipment. They can provide you with detailed information on
available models that meet your specific requirements. Keep in mind that the
market might have new offerings beyond my last training data in September
2021, so it's a good idea to check for the latest options.



O2%+CO%+CO2%+CH4%+CnHm%+H2% All measurement in one unit

Applications

coal chemical process
steel making process as blast furnace, converter, coking, direct iron
ore smelting reduction
syngas production from Biomass and coal gas gasification processes


Components Method Range Resolution Precision
CO2 NDIR 0-5% to 100% 0.01% ≤2%
CO NDIR 0-5% to 100% 0.01% ≤2%
H2 TCD 0-5% to 100% 0.01% ≤3%
O2 ECD 0-5% to 25% 0.01% ≤3%
CH4 NDIR 0-5% to 100% 0.01% ≤2%
CnHm (optional) NDIR 0-5% to 10% 0.01% ≤2%
Note: Measurement range can be customized by the requirement. Max: 6
components at the same time.
Response Time (TD+T90) <10s (NDIR)
Response Time 15min
I/O port RS232
Work temperature 0～50℃
Relative humidity 5～85%
Ambient air pressure 86～108kPa
Power supply AC 220±10%V 50Hz±1Hz
Weight About 3.5kg
