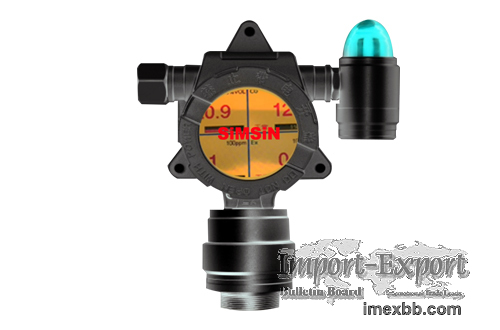

Industrial Wired Combustible Gas detector

Product name: Industrial Wired Combustible Gas detector
Model No：SS-ENVIR-CBS680WD4P
Product Description:
It is used to monitor whether flammable gas leaks in the industrial
production process, whether there is a risk of gas combustion, and to prevent
the occurrence of fire and explosion accidents. Industrial grade explosion-
proof type sulfur dioxide detector, can use standard modbus-rtu communication
protocol in flammable and explosive places, via RS485 wired transmission
Main Application:
All kinds of chemical, petroleum, medicine, military, experimental bases and
other flammable and explosive places.

Product type
Industrial Grade Explosion-Proof Wired Combustible Gas detector

Product description
It is used to monitor whether flammable gas leaks in the industrial
production process, whether there is a risk of gas combustion, and to prevent
the occurrence of fire and explosion accidents. Industrial grade explosion-
proof type sulfur dioxide detector, can use standard modbus-rtu communication
protocol in flammable and explosive places, via RS485 wired transmission

Scope of application
With explosion-proof function, can be used in explosive areas

Functional characteristics
1.Built-in high-quality sulfur dioxide sensor, high precision, strong
stability, low error rate
2.Industrial grade, support 24 hours of continuous online all year round
3.IP66 super high explosion-proof rating
4.Full range temperature compensation, long-term stability and reliability of
measurement values
5.Automatic correction

Technical Parameters
1.Types of combustible gases: H2, oxygen, natural gas, ethanol, propane, etc
2.Linear error: ≤±2%
3.Detection principle: Catalytic combustion
4.Operating temperature: 0℃ ~ +50℃
5.Working pressure: 86 ~ 106Kpa
6.Wide voltage: 24VDC(9-30VDC)
7.Detection range: 0-100%
8.Resolution: 0.1%
